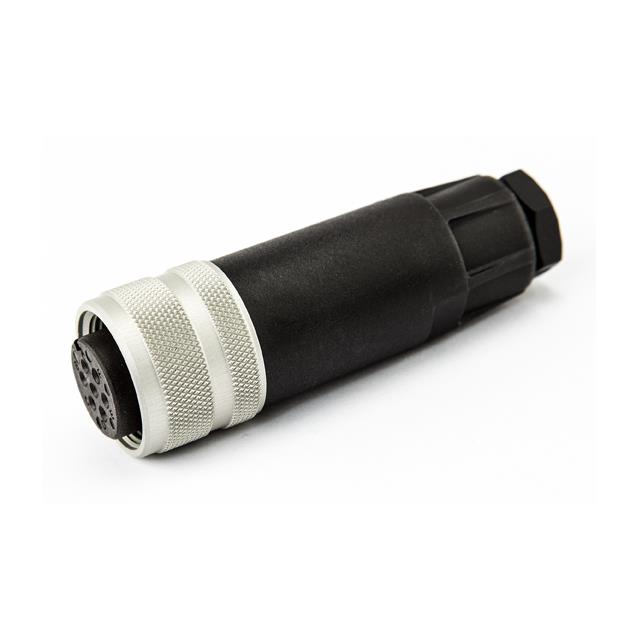

C01510D0060021

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 7POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 7POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C01510D0060021	C01510D006 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Size	1.6 mm	1.6 mm
Contact Type	Crimp	Crimp
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black, Silver	Black, Silver
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Insert Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	6
Number of Positions [custom]	1	1
Number of Positions [custom]	6	6
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Shell Material	Aluminum	Aluminum
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLUG HSNG FMALE 7POS INLINE

Part	Connector Type	Ingress Protection	Material Flammability Rating	Type	Housing Color	Includes	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Insert Material	Shielding	Note	Shell Material	Contact Type	Features	Contact Shape	Orientation	Number of Positions
Amphenol Tuchel Industrial C01510D0060021	Plug Housing	IP65 - Dust Tight, Water Resistant	UL94 V-0	For Female Sockets	Black, Silver	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	1.6 mm	100 °C	-40 °C	1	6	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Unshielded	Contacts Not Included	Aluminum	Crimp	Backshell, Cable Clamp, Coupling Nut	Circular	Keyed
Amphenol Tuchel Industrial C01510D0060012	Plug Housing	IP65 - Dust Tight, Water Resistant	UL94 V-0	For Female Sockets	Black, Silver	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	1.6 mm	100 °C	-40 °C			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Unshielded	Contacts Not Included	Aluminum	Crimp	Backshell, Cable Clamp, Coupling Nut	Circular	Keyed	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 27.69

General part information

7 (6 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
