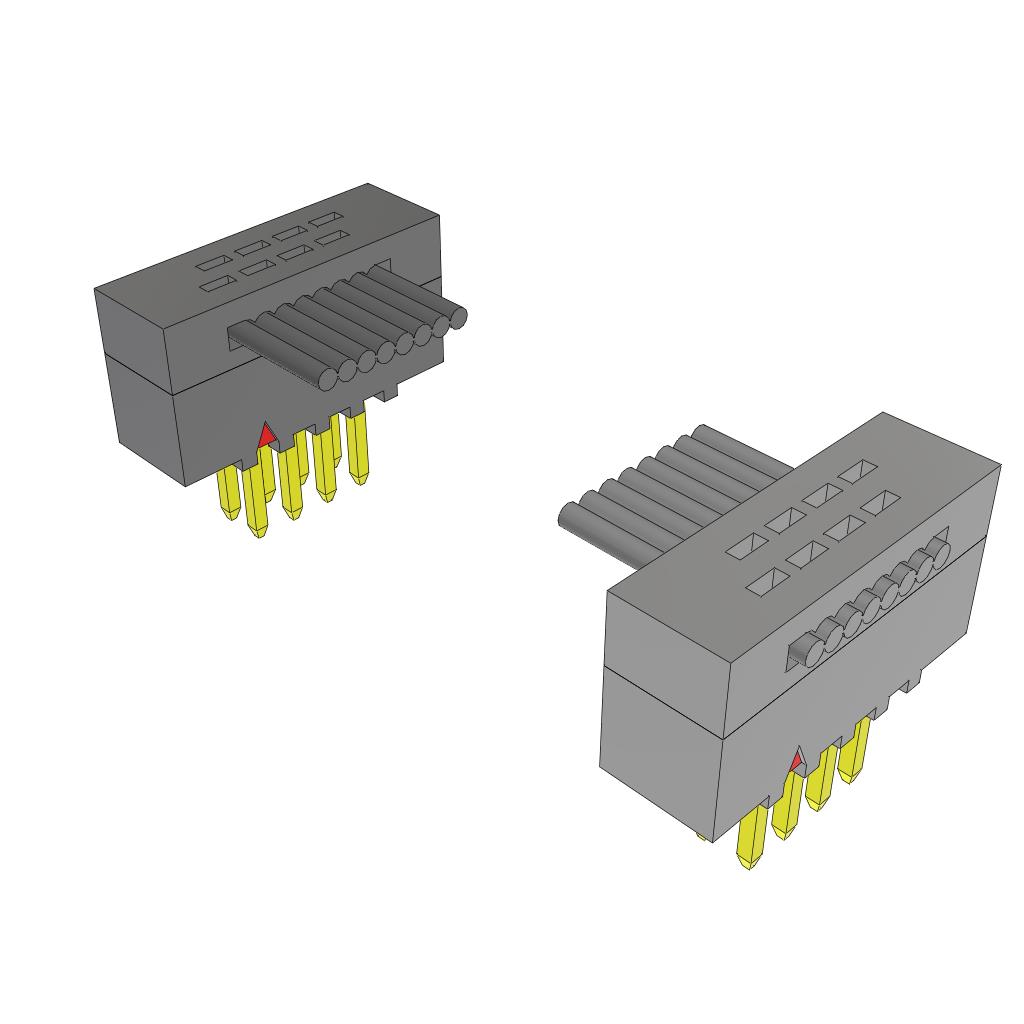

FFMD-04-D-08.00-01

Active

Samtec Inc.

.050 CABLE PLUG

Search across all available documentation for this part.

Active

Samtec Inc.

.050 CABLE PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Rows	Cable Termination	Number of Positions	Shielding	Pitch - Cable [x]	Pitch - Cable	Contact Finish	Pitch - Connector	Pitch - Connector	Length	Length	Length	Board-Side Pitch	Board-Side Pitch	Number of Positions Loaded	Color	Wire Gauge	Mounting Type	Features	Cable Pitch [custom]	Cable Pitch [custom]	Row Spacing	Row Spacing	Length [x]	Length [x]	Length [x]
Samtec Inc. FFMD-04-D-07.00-01	Plug to Plug	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm	0.583 ft	7 in	177.8 mm
Samtec Inc. FFMD-04-01	Ribbon Cable	2	IDC	8				Tin						1.27 mm	0.05 in	All	Black	30 AWG	Through Hole	Feed Through	0.64 mm	0.025 in	1.27 mm	0.05 in
Samtec Inc. FFMD-04-T-12.00-01	Socket to Plug	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm	1 ft		304.8 mm
Samtec Inc. FFMD-04-D-05.00-01-SR	Plug to Plug	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm										Strain Relief					5 "	127 mm	0.417 '
Samtec Inc. FFMD-04-S-02.00-01	Plug to Cable	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm	0.167 '	2 "	50.8 mm
Samtec Inc. FFMD-04-D-16.00-01	Plug to Plug	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm																406.4 mm	1.33 ft
Samtec Inc. FFMD-04-T-05.00-01	Socket to Plug	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm															5 "	127 mm	0.417 '
Samtec Inc. FFMD-04-T-04.00-01	Socket to Plug	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm															4 "	101.6 mm	0.333 ft
Samtec Inc. FFMD-04-S-09.00-01	Plug to Cable	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm	0.75 ft	9 in	228.6 mm
Samtec Inc. FFMD-04-D-08.00-01	Plug to Plug	2	IDC	8	Unshielded	0.025 in	0.64 mm	Tin	0.05 in	1.27 mm	0.667 ft	8 in	203.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.49
