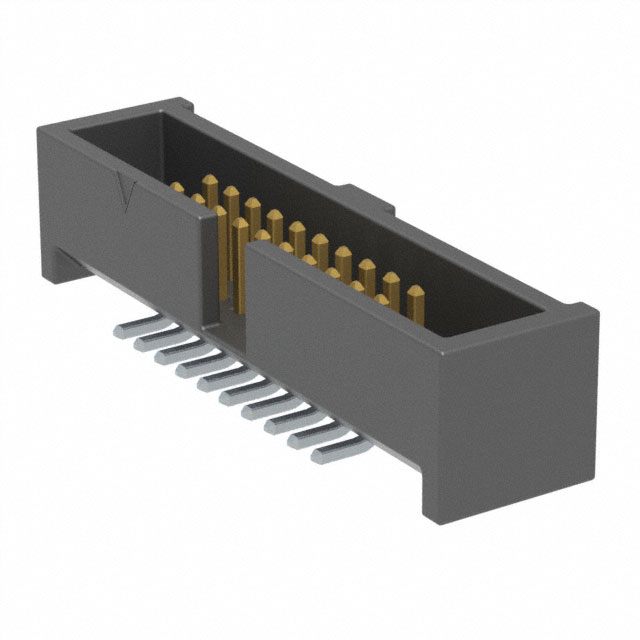

ESHF-110-01-L-D-SM-K-TR

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .050" Shrouded Header For FFSD With Strain Relief +1

ESHF-110-01-L-D-SM-K-TR

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet .050" Shrouded Header For FFSD With Strain Relief +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESHF-110-01-L-D-SM-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	5.45 mm
Insulation Height	0.215 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

ESHF-110 Series

Part	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Style	Shrouding	Fastening Type	Connector Type	Contact Shape	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Material	Contact Type	Contact Finish - Post	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Current Rating (Amps)
Samtec Inc. ESHF-110-01-F-D-RA	5.6 mm	0.22 in	Gold	20	-55 °C	125 °C	Through Hole Right Angle	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Keying Slot	0.05 in	1.27 mm	Flash	Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2	2.16 mm	0.085 in	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin
Samtec Inc. ESHF-110-01-L-D-SM-LC-K-TR	5.45 mm		Gold	20	-55 °C	125 °C	Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Board Lock Keying Slot Pick and Place	0.05 in	1.27 mm		Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2			Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin	Tin	0.215 in	10 çin	0.25 çm
Samtec Inc. ESHF-110-01-F-D-SM	5.45 mm		Gold	20	-55 °C	125 °C	Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Keying Slot	0.05 in	1.27 mm	Flash	Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2			Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin		0.215 in
Samtec Inc. ESHF-110-01-L-D-SM-LC-TR	5.45 mm		Gold	20	-55 °C	125 °C	Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Board Lock Keying Slot	0.05 in	1.27 mm		Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2			Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin	Tin	0.215 in	10 çin	0.25 çm
Samtec Inc. ESHF-110-01-S-D-TH	5.33 mm	0.21 in	Gold	20	-55 °C	125 °C	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Keying Slot	0.05 in	1.27 mm		Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2	1.91 mm		Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin					0.075 in
Samtec Inc. ESHF-110-01-L-D-SM-K-TR	5.45 mm		Gold	20	-55 °C	125 °C	Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Keying Slot Pick and Place	0.05 in	1.27 mm		Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2			Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin	Tin	0.215 in	10 çin	0.25 çm
Samtec Inc. ESHF-110-01-F-D-SM-TR	5.45 mm		Gold	20	-55 °C	125 °C	Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Keying Slot	0.05 in	1.27 mm	Flash	Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2			Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin		0.215 in
Samtec Inc. ESHF-110-01-F-D-TH	5.33 mm	0.21 in	Gold	20	-55 °C	125 °C	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Keying Slot	0.05 in	1.27 mm	Flash	Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2	1.91 mm		Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin					0.075 in
Samtec Inc. ESHF-110-01-F-D-TH-LC	5.33 mm	0.21 in	Gold	20	-55 °C	125 °C	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Board Lock Keying Slot	0.05 in	1.27 mm	Flash	Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2	1.91 mm		Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin					0.075 in
Samtec Inc. ESHF-110-01-L-D-SM-LC	5.45 mm		Gold	20	-55 °C	125 °C	Surface Mount	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	Header	Square	Board Lock Keying Slot	0.05 in	1.27 mm		Black	0.05 in	1.27 mm	All	Solder	3.05 mm	0.12 in	2			Liquid Crystal Polymer (LCP)	Phosphor Bronze	Male Pin	Tin	0.215 in	10 çin	0.25 çm		3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.50
		10	$ 4.98
		100	$ 3.86
	Digi-Reel®	1	$ 6.50
		10	$ 4.98
		100	$ 3.86
	Tape & Reel (TR)	350	$ 2.76
