ASPI-F4030-R40M-T
ObsoleteAbracon LLC
FIXED IND 0.4UH 15.5A 3.2 MOHM
ASPI-F4030-R40M-T
ObsoleteAbracon LLC
FIXED IND 0.4UH 15.5A 3.2 MOHM
Description
General part information

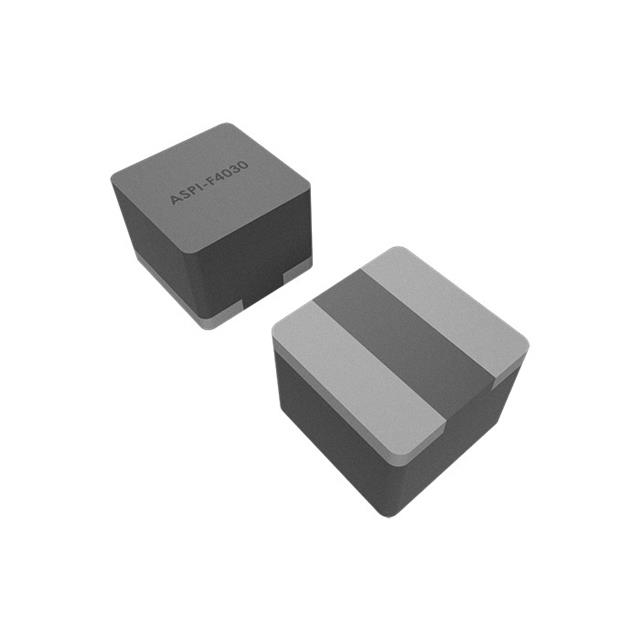

ASPI-F4030-R40M-T
400 nH Shielded Molded Inductor 22.5 A 3.2mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-F4030-R40M-T |
|---|---|
| Current - Saturation (Isat) | 15.5 A |
| Current Rating | 22.5 A |
| DC Resistance (DCR) (Max) | 3.2 mOhm |
| Height - Seated (Max) | 0.122 in |
| Inductance | 400 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Package Name | 4030 |
| Shielding | Shielded |
| Size / Dimension Length | 0.161 in |
| Size / Dimension Width | 0.161 in |
| Supplier Device Package | 4030 |
| Tolerance | 20 % |
| Type | Molded |
