DRAP124-1R5-R
ActiveEaton - Electronics Division
FIXED IND 1.5UH 9.36A 5.8MOHM SM
DRAP124-1R5-R
ActiveEaton - Electronics Division
FIXED IND 1.5UH 9.36A 5.8MOHM SM
Description
General part information
DRAP124-1R5-R

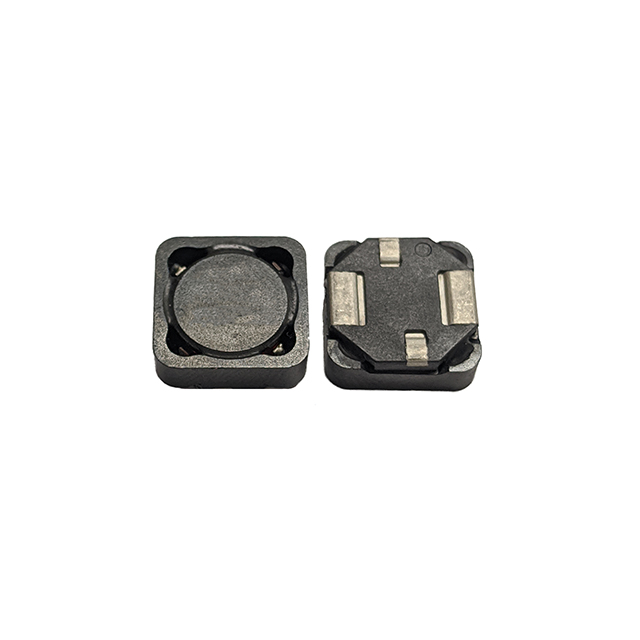

1.5 µH Shielded Inductor 9.36 A 5.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | DRAP124-1R5-R |
|---|---|
| Current - Saturation (Isat) | 17.1 A |
| Current Rating | 9.36 A |
| DC Resistance (DCR) (Max) | 5.8 mOhm |
| Height - Seated (Max) | 0.181 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
