FMAD1321
ObsoleteFairview Microwave
ADAPT PLUG-PLUG TNC
FMAD1321
ObsoleteFairview Microwave
ADAPT PLUG-PLUG TNC
Description
General part information
FMAD1321

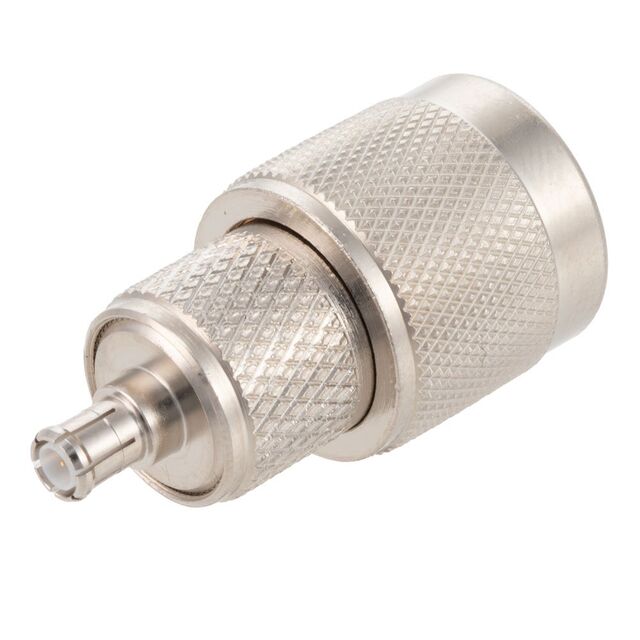

Adapter Coaxial Connector TNC Plug, Male Pin To MCX Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1321 |
|---|---|
| Adapter Series | TNC to MCX |
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Plug, Male Pin |
| Convert To (Adapter End) | MCX Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
