DSC1001AI1-016.3840
ActiveMicrochip Technology
MEMS OSC XO 16.3840MHZ CMOS SMD
DSC1001AI1-016.3840
ActiveMicrochip Technology
MEMS OSC XO 16.3840MHZ CMOS SMD
Description
General part information
DSC1001AI1-016.3840
16.384 MHz XO (Standard) CMOS Oscillator 1.7V ~ 3.6V Standby (Power Down) 4-VDFN Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC1001AI1-016.3840 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 15 µA |
| Current - Supply (Max) | 8 mA |
| Frequency | 16.384 MHz |
| Frequency Stability | 50 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |

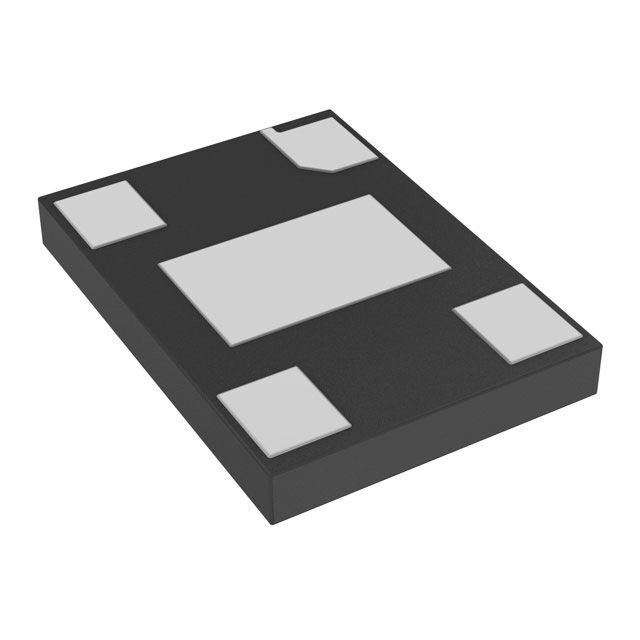

| Package / Case | 4-VDFN Exposed Pad |
| Package Length | 7 mm |
| Package Name | 4-DFN, 4-VDFN |
| Package Width | 5 mm |
| Ratings | AEC-Q100 |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
