Description
General part information
XJCBBIAANF-10.368000

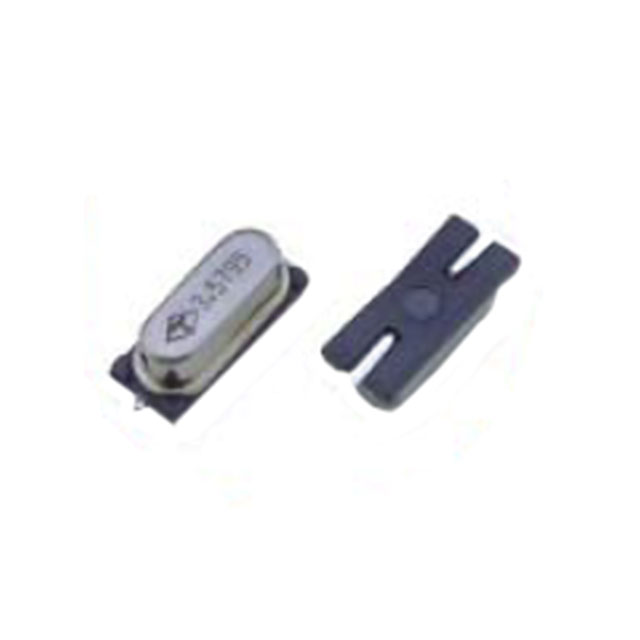

10.368 MHz ±10ppm Crystal 10pF 40 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | XJCBBIAANF-10.368000 |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohm |
| Frequency | 10.368 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.165 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | HC-49/US |
| Size / Dimension Length | 0.449 in |
| Size / Dimension Width | 0.177 in |
| Type | MHz Crystal |
