9852-05-20TR
ActiveREED RELAY, SPDT, 5 VDC, 9852 SERIES, SURFACE MOUNT, 110 OHM, 100 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9852-05-20TR |
|---|---|
| Coil Current | 45.5 mA |
| Coil Resistance | 110 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 100 mA |
| Features | Magnetic Shield |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 1 ms |
| Switching Voltage | 30 VAC, 30 VDC |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

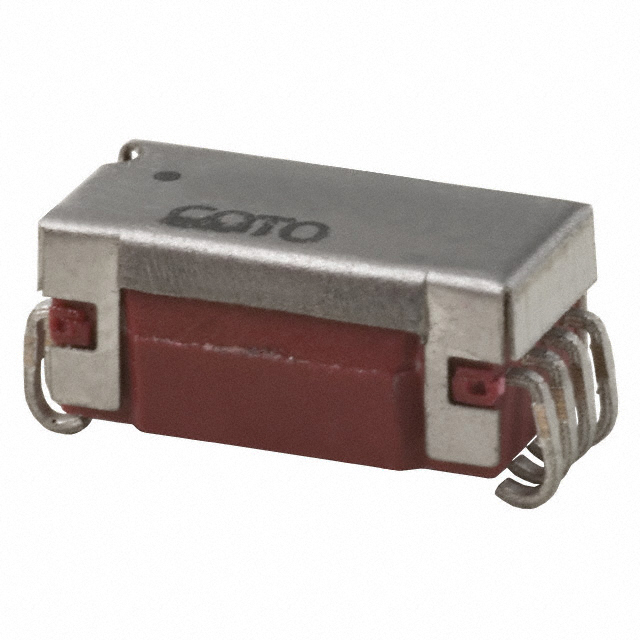

9852-05-20TR
The 9852 series surface-mount Reed Relay is ideally suited to the needs of automated test equipment and many more applications. It combines small size with exceptional RF performance. It adds form-C capability. Small size plus added features allow for high density and makes this relay ideal for designs such as high speed, high pin count VLSI testers where high speed, small size and high performance are all needed.
