1419278
ActivePhoenix Contact

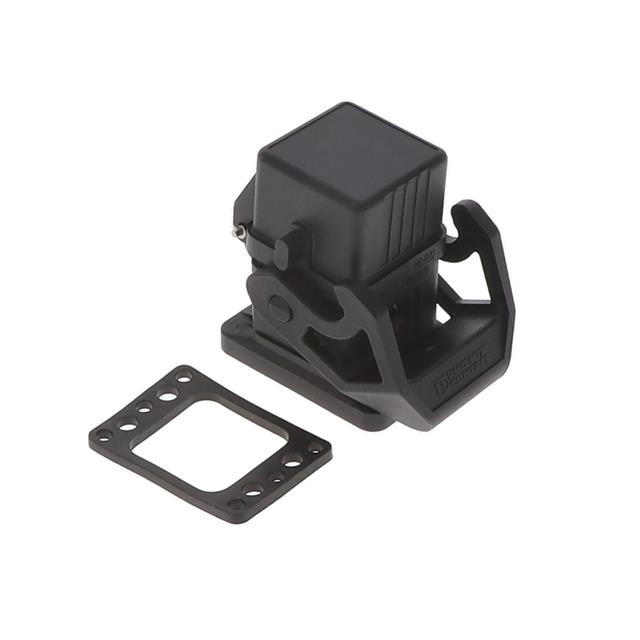

PANEL MOUNTING BASE WITH COVER D
1419278
ActivePhoenix Contact
PANEL MOUNTING BASE WITH COVER D
Description
General part information
1419278
Base - Panel Mount Connector Bottom Entry D7 IP66 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1419278 |
|---|---|
| Connector Type | Base - Panel Mount |
| Features | Cover |
| Housing Color | Black |
| Housing Material | Nylon, Polyamide, PA |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -20 °C |
| Size | D7 |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
