PE44164
ActivePasternack

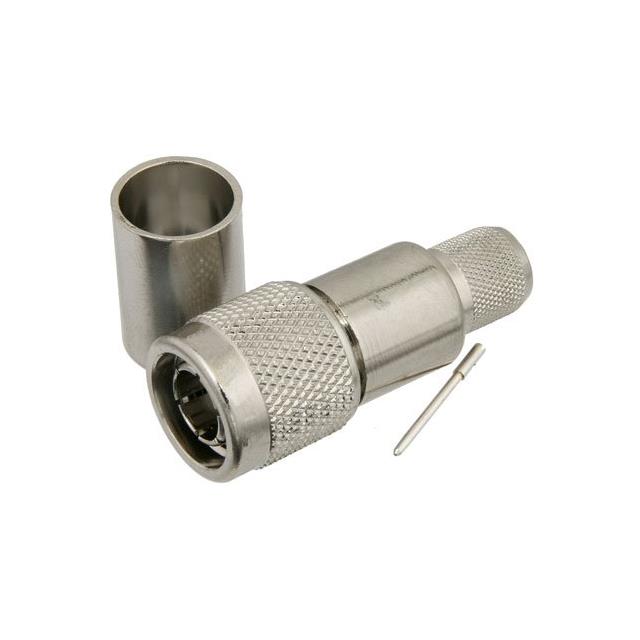

75 OHM TNC MALE CONNECTOR CRIMP/
PE44164
ActivePasternack
75 OHM TNC MALE CONNECTOR CRIMP/
Description
General part information
PE44164
TNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44164 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-11, 144, 216 |
| Center Contact Plating | Silver |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
