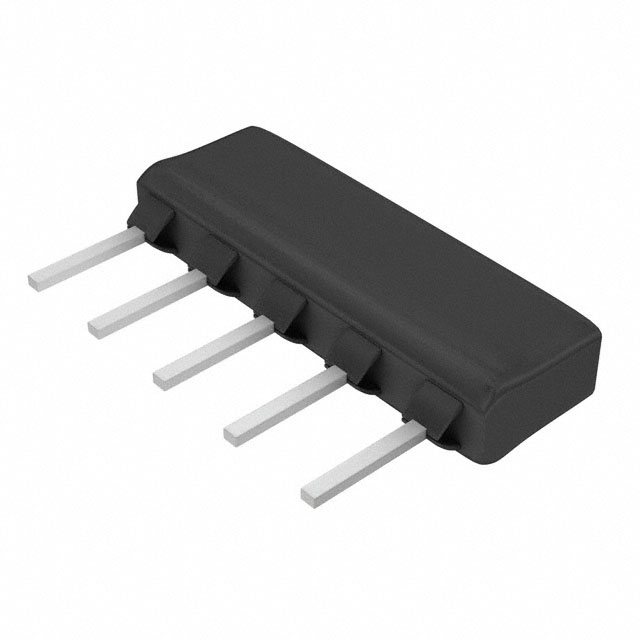

CSC05A0110K0GPA
ActiveVishay Dale
RES ARRAY 4 RES 10K OHM 5SIP
CSC05A0110K0GPA
ActiveVishay Dale
RES ARRAY 4 RES 10K OHM 5SIP
Description
General part information
CSC05A0110K0GPA
10k Ohm ±2% 200mW Power Per Element Bussed 4 Resistor Network/Array ±100ppm/°C 5-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | CSC05A0110K0GPA |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.195 in |
| Mounting Type | Through Hole |
| Number of Pins | 5 |
| Number of Resistors | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5-SIP |
| Package Name | 5-SIP |
| Power Per Element | 200 mW |
| Resistance | 10 kOhm |
| Resistor Ratio Drift | 50 ppm/°C |
| Size / Dimension Length | 0.49 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
