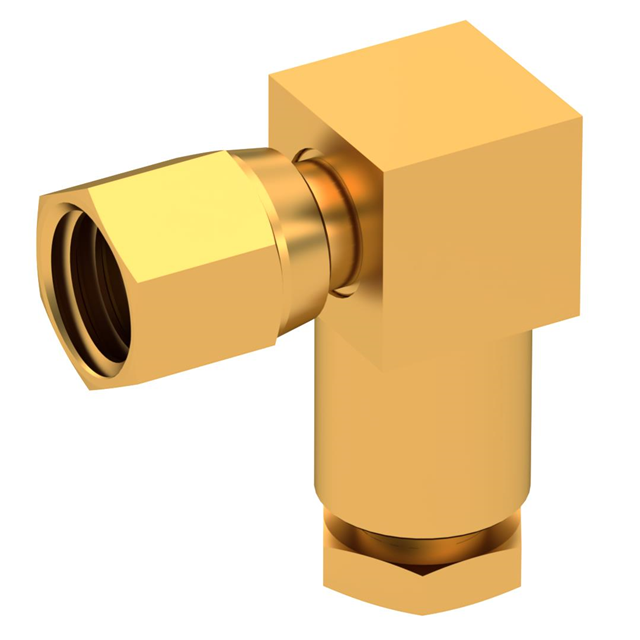

1005-1551-002

Active

Radiall USA, Inc.

SMC F RA NA CL 2/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F RA NA CL 2/50S

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1005-1551-002	1005-1551 Series

Body Finish	Nickel	Gold, Nickel
Body Material	Brass	Brass
Cable Group	196	196
Cable Group	RG-178	179, RG-174, 316, RG-178
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Plug, Female Socket	Plug, Female Socket
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Silver	Gold, Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 1 Ferrule	1 Connector, 1 Ferrule
Insertion Loss	0.5 dB	0.5 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Voltage Rating	250 VDC	250 - 335 V

SMC F RA NA CL 2.6/50S

Part	Body Material	Cable Group	Center Contact Material	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Finish	Mounting Type	Impedance	Frequency - Max [Max]	Includes	Connector Style	Dielectric Material	Housing Color	Number of Ports	Mating Cycles	Contact Termination	Center Contact Plating	Voltage Rating	Shield Termination	Cable Group
Radiall USA, Inc. 1005-1551-003	Brass	179, 316, RG-174	Beryllium Copper	0.5 dB	-65 ░C	165 °C	Female Socket, Plug	Gold	Free Hanging (In-Line), Right Angle	50 Ohms	10 GHz	1 Connector, 1 Ferrule	SMC	Polytetrafluoroethylene (PTFE)	Gold	1	500	Solder	Gold	335 V	Clamp
Radiall USA, Inc. 1005-1551-002	Brass	RG-178	Beryllium Copper	0.5 dB	-65 ░C	165 °C	Female Socket, Plug	Nickel	Free Hanging (In-Line), Right Angle	50 Ohms	10 GHz	1 Connector, 1 Ferrule	SMC	Polytetrafluoroethylene (PTFE)	Silver	1	500	Solder	Gold	250 VDC	Clamp	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
