1218C SL005

Active

ALPHA WIRE

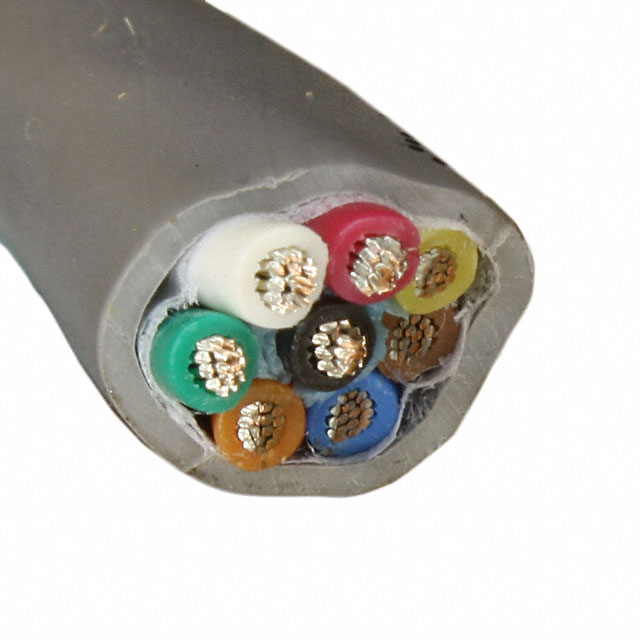

CABLE 8CON 24AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8CON 24AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1218C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.44 mm
Jacket (Insulation) Diameter [diameter]	0.214 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

CABLE 8CON 24AWG SLATE SHLD 100'

Part	Cable Type	Conductor Material	Wire Gauge	Conductor Insulation	Shield Type	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket Color	Number of Conductors	Jacket (Insulation) Material	Shield Coverage	Shield Material
ALPHA WIRE 1218C SL005	Multi-Conductor	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)	Foil	Communication, Control	-20 C	80 C	32 AWG	7	300 V	Drain Wire	5.44 mm	0.214 in	30.5 m	100 ft	Slate	8	Poly-Vinyl Chloride (PVC)	100 %	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
