Description
General part information
LHDM015301DZBV0E

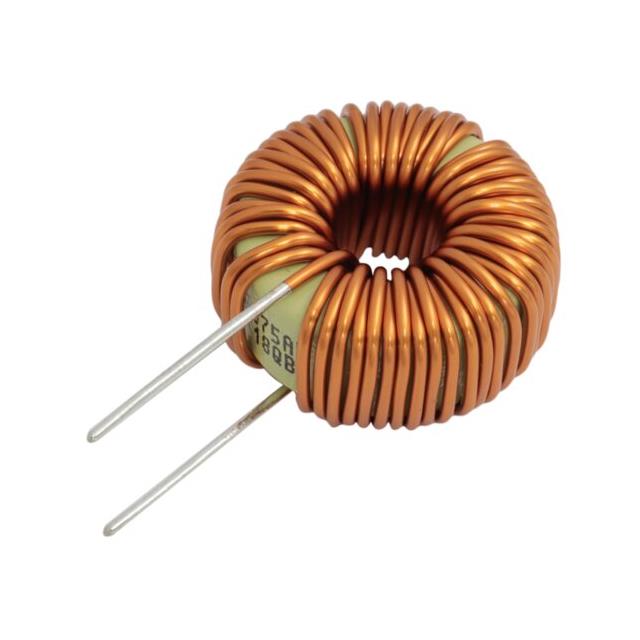

360 µH Unshielded Toroidal Inductor 15 A 35mOhm Max Vertical, No Base, 2 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | LHDM015301DZBV0E |
|---|---|
| Current Rating | 15 A |
| DC Resistance (DCR) (Max) | 35 mOhm |
| Inductance | 0.36 mH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2 PC Pin, No Base, Vertical |
| Package Name | Vertical, No Base, 2 PC Pin |
| Package Pad Count | 2, 2 PC Pin |
| Pad Count | 2 PC Pin |
| Shielding | Unshielded |
| Size / Dimension Diameter | 2.264 in |
| Size / Dimension Width | 1.26 in |
| Supplier Device Package - Orientation | Vertical |
| Supplier Device Package - Pad Count | 2 |
| Tolerance | 20 % |
| Type | Toroidal |
