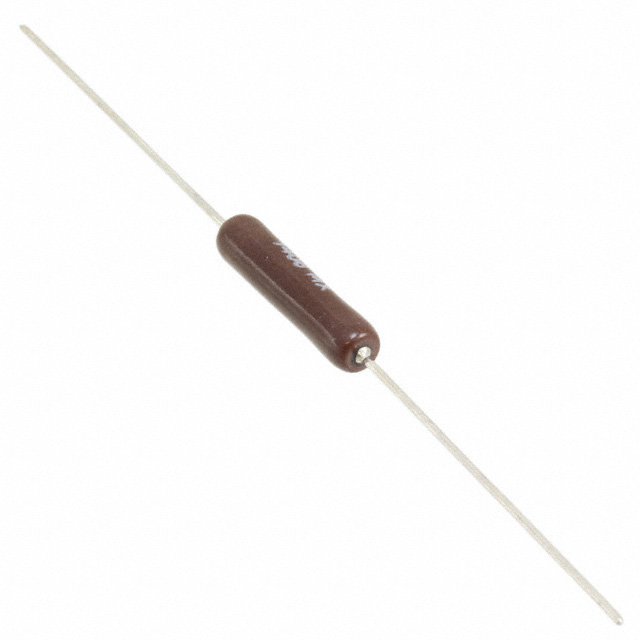

Specification	25J3R0E

Composition	Wirewound
Features	Flame Retardant Coating, Safety
Number of Terminations	2
Package / Case	Axial
Package Name	Axial
Power (Watts)	5 W
Resistance	3 Ohm
Size / Dimension Diameter	0.276 in
Size / Dimension Length	1.016 in
Temperature Coefficient	50 ppm/°C
Tolerance	5 %

20 Series

Part	Power (Watts)	Features	Composition	Number of Terminations	Package Name	Temperature Coefficient	Package / Case	Resistance	Tolerance	Size / Dimension Diameter	Size / Dimension Length
Ohmite 25J350E	5 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	350 Ohm	5 %	0.276 in	1.016 in
Ohmite 23J75RE	3 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	75 Ohm	5 %	0.22 in	0.516 in
Ohmite 22J47RE	2 w	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	47 Ohms	5 %	0.22 in	0.421 in
Ohmite 23J10KE	3 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	10 kOhm	5 %	0.22 in	0.516 in
Ohmite 22J270E	2 w	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	270 Ohm	5 %	0.22 in	0.421 in
Ohmite 25JR25E	5 W	Flame Retardant Coating Safety	Wirewound	2	Axial		Axial	0.25 Ohms	5 %	0.276 in	1.016 in
Ohmite 23J2K2E	3 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	2.2 kOhm	5 %	0.22 in	0.516 in
Ohmite 20J3K3E	10 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	3.3 kOhm	5 %	0.394 in	1.858 in
Ohmite 20J330E	10 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	330 Ohm	5 %	0.394 in	1.858 in
Ohmite 22J750E	2 w	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/¯C	Axial	750 Ohm	5 %	0.22 in	0.421 in
