AM1440B987
ActiveAnatech Electronics Inc.
1440 MHZ CERAMIC BAND PASS FILTE
AM1440B987
ActiveAnatech Electronics Inc.
1440 MHZ CERAMIC BAND PASS FILTE
Description
General part information
AM1440B987

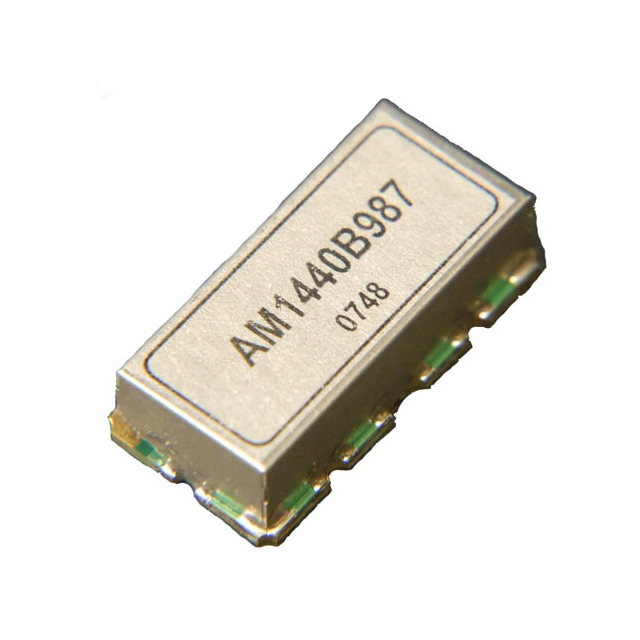

1.44GHz Center Band Pass Ceramic Filter 310 MHz 50Ohm 8-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1440B987 |
|---|---|
| Bandwidth | 310 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 1.44 GHz |
| Height (Max) | 0.356 in |
| Impedance | 50 Ohm |
| Insertion Loss | 1.2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.5 in |
