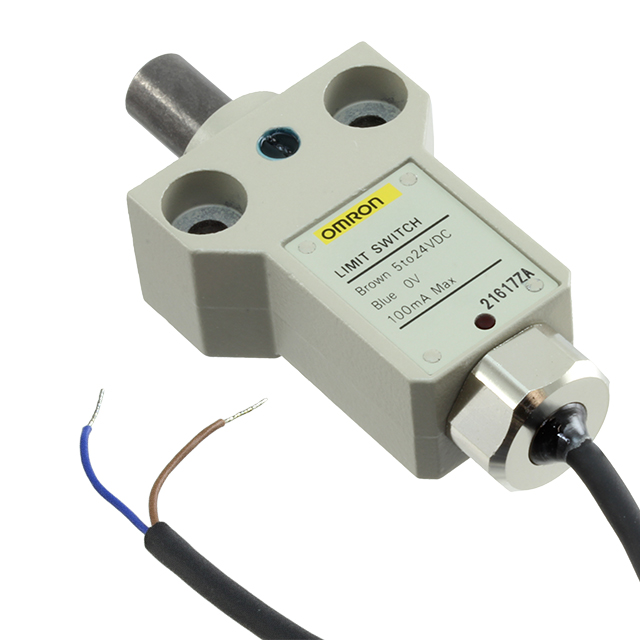

Specification	D5A-8512

Actuator Type	Round (Pin Plunger)
Cable Length	5 m
Circuit	Transistor Output, PNP
Differential Travel (Linear)	0.0002 in
Electrical Life (Cycles)	1000000 Cycles
Features	Cable Length
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	400 gf
Operating Position (Length)	0.825 in
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Overtravel (Linear)	0.197 in
Pretravel (Length)	0.04 in
Termination Style	Cable Leads
