PQ7834
Obsoleteifm efector, inc.
SENSOR 145.0PSI 1/4"
PQ7834
Obsoleteifm efector, inc.
SENSOR 145.0PSI 1/4"
Description
General part information
PQ7834

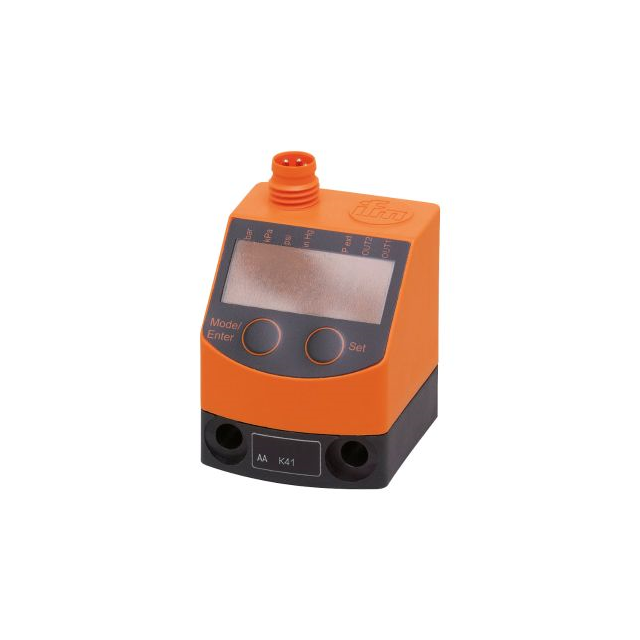

Pressure Sensor 14.5PSI ~ 145.0PSI (100kPa ~ 1000kPa) Vacuum Female - 1/4" (6.35mm) G Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ7834 |
|---|---|
| Accuracy | 0.5 % RH |
| Maximum Pressure | 435.11 PSI |
| Operating Pressure (Max) | 145 PSI |
| Operating Pressure (Min) | 14.5 PSI |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | PNP- NC, NO |
| Package / Case | Module |
| Port Diameter | 0.25 " |
| Port Feature | G |
| Port Gender | Female |
| Port Style | Threaded |
| Pressure Type | Vacuum |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 18 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
