EPS-400-.300-48-BLACK-BUL

Active

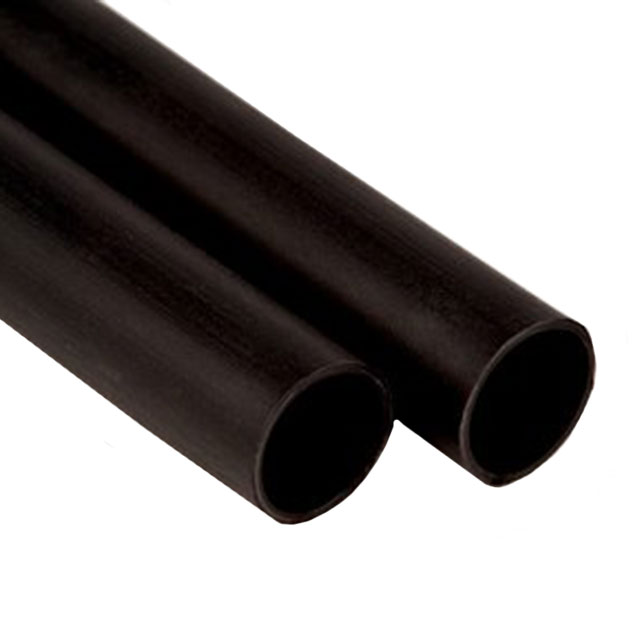

HEAT SHRINK TUBING ST SEMI RIGID POLYOLEFIN BLACK MEDIUM

Search across all available documentation for this part.

Active

HEAT SHRINK TUBING ST SEMI RIGID POLYOLEFIN BLACK MEDIUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPS-400-.300-48-BLACK-BUL	EPS-400 Series

Color	Black	Black
Features	Flame Retardant, Fluid Resistant, Adhesive Lined	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered	-	4.45 mm
Inner Diameter - Recovered	-	0.175 in
Inner Diameter - Recovered [diameter]	1.52 mm	1.52 mm
Inner Diameter - Recovered [diameter]	0.06 in	0.06 in
Inner Diameter - Supplied [diameter]	7.62 mm	7.62 - 17.78 mm
Inner Diameter - Supplied [diameter]	0.3 in	0.3 - 0.7 in
Length	-	152.4 mm
Length	-	6 "
Length	-	0.5 '
Length [x]	1.22 m	1.22 m
Length [x]	4 ft	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.84 mm	0.84 - 1.52 mm
Recovered Wall Thickness	0.033 in	0.033 - 0.06 in
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	121 °C	121 °C
Shrinkage Ratio	4 to 1	4 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Semi Rigid	Tubing, Semi Rigid

HEAT SHRINK TUBING ST SEMI RIGID POLYOLEFIN BLACK MEDIUM

Part	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life Start	Type	Shelf Life	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Length	Length
3M EPS-400-.300-48-BLACK-BUL	Black	1.52 mm	0.06 in	Date of Manufacture	Tubing, Semi Rigid	120 Months	1.22 m	4 ft	7.62 mm	0.3 in	-55 °C	110 °C	121 °C	0.84 mm	0.033 in	4 to 1	Adhesive Lined, Flame Retardant, Fluid Resistant	27 °C, 80 °F	10 °C	Polyolefin (PO), Irradiated
3M EPS-400-.700-48-BLACK-BOX	Black			Date of Manufacture	Tubing, Semi Rigid	120 Months			17.78 mm	0.7 "	-55 °C	110 °C	121 °C	1.52 mm	0.06 in	4 to 1	Adhesive Lined, Flame Retardant, Fluid Resistant	27 °C, 80 °F	10 °C	Polyolefin (PO), Irradiated	4.45 mm	0.175 in	152.4 mm	6 "	0.5 '
3M EPS-400-.300-48-BLACK-BOX	Black	1.52 mm	0.06 in	Date of Manufacture	Tubing, Semi Rigid	120 Months	1.22 m	4 ft	7.62 mm	0.3 in	-55 °C	110 °C	121 °C	0.84 mm	0.033 in	4 to 1	Adhesive Lined, Flame Retardant, Fluid Resistant	27 °C, 80 °F	10 °C	Polyolefin (PO), Irradiated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Semi Rigid 0.300" (7.62mm) 4 to 1 Black 4.00' (1.22m)

Technical documentation and resources
