AA003041-G
ObsoleteTelit Cinterion

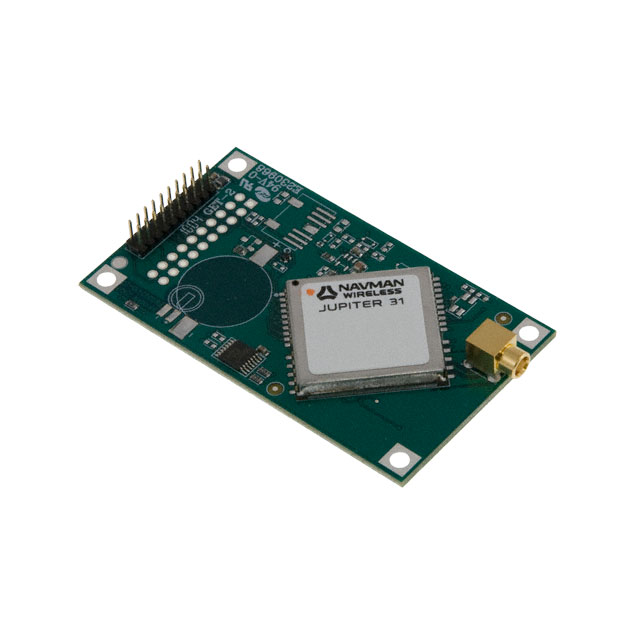

RF RCVR GPS 1575.42MHZ MODULE
AA003041-G
ObsoleteTelit Cinterion
RF RCVR GPS 1575.42MHZ MODULE
Description
General part information
AA003041-G
- RF Receiver GPS 1575.42MHz -159dBm OSX Module
Technical Specifications
Parameters and characteristics for this part
| Specification | AA003041-G |
|---|---|
| Antenna Connector | OSX |
| Applications | GPS |
| Data Interface | Connector, 2 x 10 Header |
| Data Interface Pitch | 2 mm |
| Frequency | 1575.42 MHz |
| Modulation or Protocol | GPS |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Sensitivity | -159 dBm |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
