936151-1

Active

TE Connectivity AMP Connectors

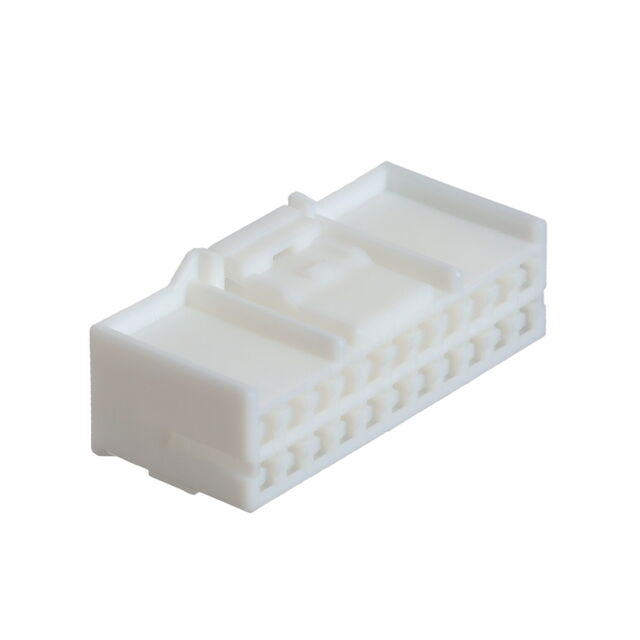

CONN PLUG HSG 22POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 22POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	936151-1	936151 Series

	-	-
Color	Natural	Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	22 positions	22 positions
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C

CONN PLUG HSG 22POS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Fastening Type	Connector Type	Number of Positions	Color	Contact Termination	Mounting Type	Note	Number of Rows
TE Connectivity AMP Connectors 936151-1	-30 ░C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT)	Latch Lock	Plug	22 positions	Natural	Crimp	Free Hanging (In-Line)	Contacts Not Included	2
TE Connectivity AMP Connectors 936151-7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Rectangular Connectors - Housings Plug Natural
