Description
General part information
09731786974

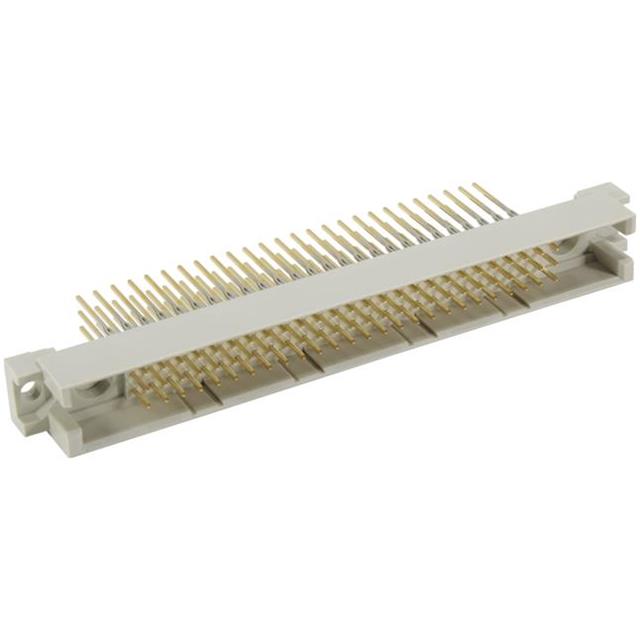

80 (78 + 2 Coax or Power) Position Din Connector Header, Male Pins Gold-Palladium Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 09731786974 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold-Palladium |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Current Rating | 2 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions (Special) | 2 |
| Number of Positions (Standard) | 78 |
| Number of Positions (Total) | 80 |
| Number of Positions Loaded | 78 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Position Types | Coax, Power |
| Style | M |
| Termination | Press-Fit |
