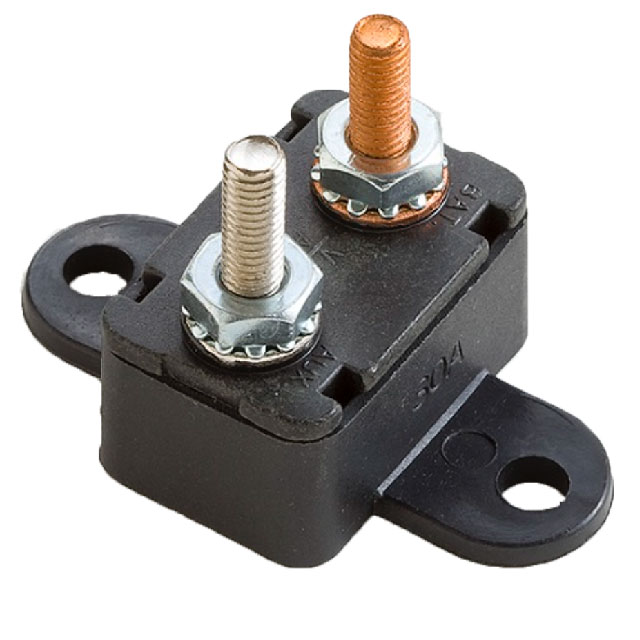

ACBP-12-H-10A
ActiveOptiFuse
HOR. BRACKET-TYPE I AUTO,10A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACBP-12-H-10A
ActiveOptiFuse
HOR. BRACKET-TYPE I AUTO,10A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACBP-12-H-10A | ACBP-12 Series |
|---|---|---|
| Actuator Type | Automatic Reset | Automatic Reset |
| Approval Agency | SAEJ553 | SAEJ553 |
| Breaker Type | Shortstop | Shortstop |
| Current Rating (Amps) | 10 A | 5 - 50 A |
| Illumination | None | None |
| Number of Poles | 1 | 1 |
| Voltage Rating - DC | 12 V | 12 V |
ACBP-12 Series
NO BRACKET-TYPE I AUTO,15A 12V
| Part | Breaker Type | Number of Poles | Illumination | Approval Agency | Current Rating (Amps) | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|
OptiFuse ACBP-12-N-15A | Shortstop | 1 | None | SAEJ553 | 15 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-H-15A | Shortstop | 1 | None | SAEJ553 | 15 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-H-35A | Shortstop | 1 | None | SAEJ553 | 35 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-V-5A | Shortstop | 1 | None | SAEJ553 | 5 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-V-25A | Shortstop | 1 | None | SAEJ553 | 25 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-N-30A | Shortstop | 1 | None | SAEJ553 | 30 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-H-10A | Shortstop | 1 | None | SAEJ553 | 10 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-H-20A | Shortstop | 1 | None | SAEJ553 | 20 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-H-40A | Shortstop | 1 | None | SAEJ553 | 40 A | Automatic Reset | 12 V |
OptiFuse ACBP-12-H-25A | Shortstop | 1 | None | SAEJ553 | 25 A | Automatic Reset | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.78 | |
| 10 | $ 4.49 | |||
| 25 | $ 4.20 | |||
| 50 | $ 3.91 | |||
| 100 | $ 3.57 | |||
| 250 | $ 3.52 | |||
| 500 | $ 3.40 | |||
| 1000 | $ 3.29 | |||
Description
General part information
ACBP-12 Series
Circuit Breaker Shortstop 10A AC 12 V DC Automatic Reset
