321-30100
ActiveADHESIVE LINED HEAT SHRINK TUBING, 6:1, 1.299 ", 33 MM, BLACK, 4 FT, 1.2 M
321-30100
ActiveADHESIVE LINED HEAT SHRINK TUBING, 6:1, 1.299 ", 33 MM, BLACK, 4 FT, 1.2 M
Description
General part information
321-30100

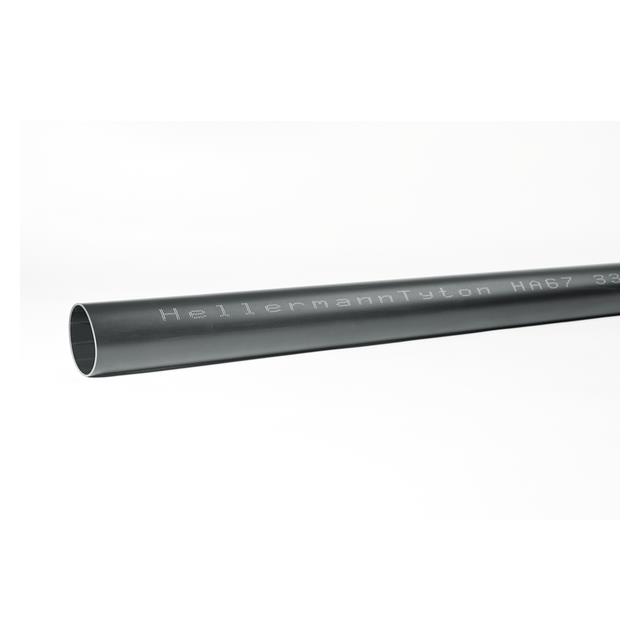

The HA67-33.0-5.5 is a Black adhesive lined Heat Shrinkable Tube made of cross-linked polyolefin. It insulates seals and protects large size differences between connectors and cables. Conforms well to highly variable substrate dimensions. Passes over large connectors and shrinks onto much smaller cable jackets.
Technical Specifications
Parameters and characteristics for this part
| Specification | 321-30100 |
|---|---|
| Color | Black |
| Features | Impact Resistant, Abrasion Resistant, Adhesive Lined |
| Inner Diameter - Recovered | 0.217 in |
| Inner Diameter - Supplied | 1.3 in |
| Length | 48 in |
| Material | Irradiated, Polyolefin (PO) |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Recovered Wall Thickness | 0.134 in |
| Shrink Temperature | 120 °C |
| Shrinkage Ratio | 6 |
| Type | Flexible, Tubing |
