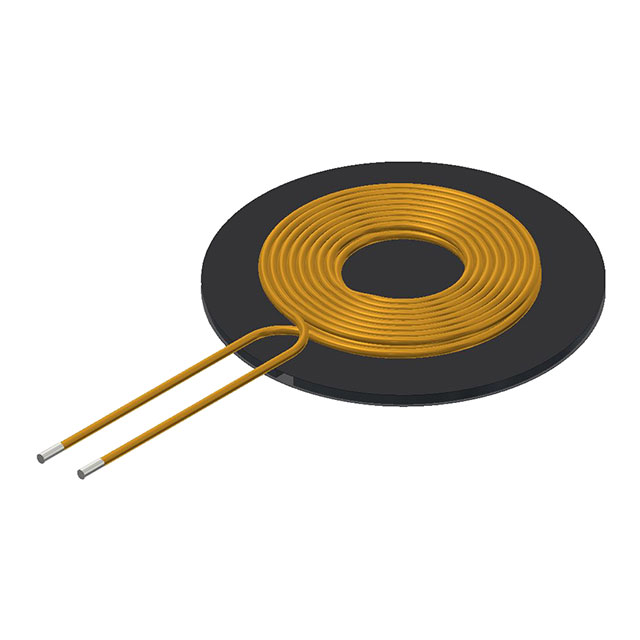

WT282890-16F2-G
ActiveTDK Corporation
TX 1 COIL 2 LYR 7.4UH
WT282890-16F2-G
ActiveTDK Corporation
TX 1 COIL 2 LYR 7.4UH
Description
General part information
WT282890-16F2-G
1 Coil, 2 Layer 7.4µH Wireless Charging Coil Transmitter 110mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | WT282890-16F2-G |
|---|---|
| DC Resistance (DCR) | 110 mOhm |
| Function | Transmitter |
| Inductance | 7.4 µH |
| Size / Dimension Diameter | 1.12 in |
| Size / Dimension Height | 0.1 in |
| Type | 1 Coil, 2 Layer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
