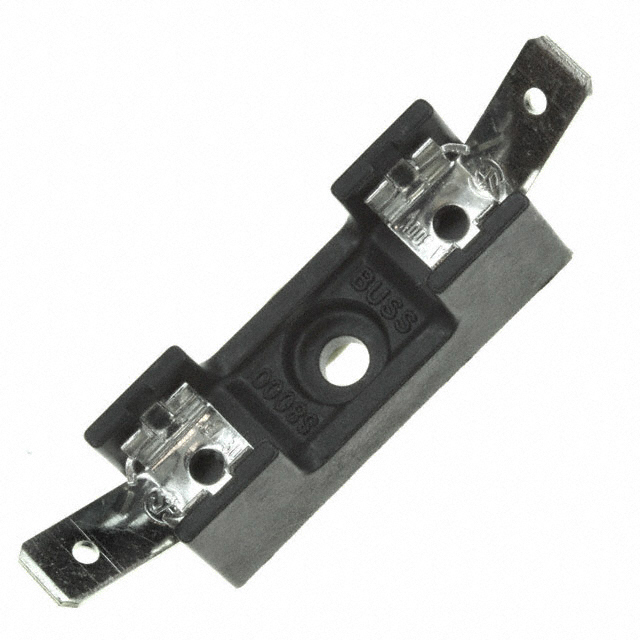

BK/S-8202-1-R
ActiveEaton - Electronics Division
FUSE BLOCK CART 600V CHASS MNT
BK/S-8202-1-R
ActiveEaton - Electronics Division
FUSE BLOCK CART 600V CHASS MNT
Description
General part information
BK/S-8202-1-R
Fuse Block 30 A 600V 1 Circuit Cartridge Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/S-8202-1-R |
|---|---|
| Approval Agency | cURus |
| Contact Finish | Tin |
| Contact Material | Spring Bronze |
| Current Rating | 30 A |
| For Use With/Related Products | 3AG, 1/4" x 1-1/4" (SFE-20) |
| Fuse Diameter | 0.25 in |
| Fuse Length | 1.26 in |
| Fuse Type | Cartridge |
| Fuseholder Type | Block |
| Mounting Type | Chassis Mount |
| Number of Circuits | 1 |
| Quick Connect Size (0.250") | 0.25 in |
| Termination Style | Quick Connect |
| Voltage | 600 V |
