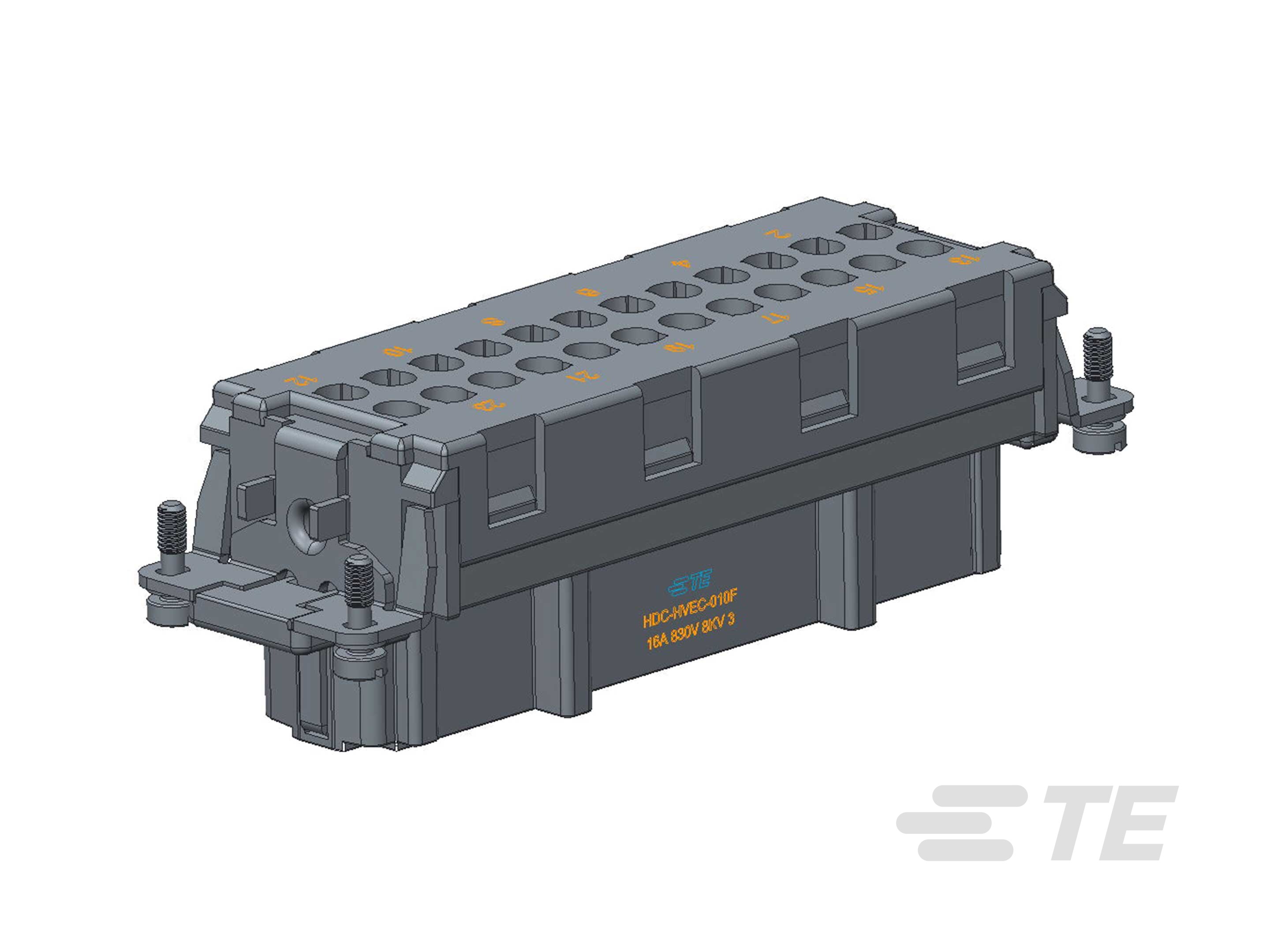

Specification	T2300104201-000

Connector Type	Insert without Contacts
Current Rating	16 A
Gender	Female
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	Ground, 10, 2
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Position Types	Ground
Termination Style	Crimp
Voltage Rating	830 V

HDC HE Series

Heavy Duty Power Connectors H32A-SGR-2PG21

...

Part	Contact Finish Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Pin or Socket	Contact Finish	Contact Termination	Wire Gauge	Gender	Current Rating	Connector Type	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Termination Style	Size	Position Types	Contact Type	Housing Material	Material Flammability Rating	Color
TE Connectivity AMP Connectors T2030001002-000	78.7 µin	26 AWG	22 AWG	Pin	Silver	Crimp
TE Connectivity AMP Connectors T2030002008-000				Socket	Silver	Crimp	18 AWG
TE Connectivity AMP Connectors T2040063101-001								Male	16 A	Insert without Contacts	500 V	125 °C	-40 °C	6	Crimp
TE Connectivity AMP Connectors T2059202201-000								Female	16 A	Insert without Contacts	400 V	125 °C	-40 °C	20	Crimp	H6B	Ground	CEF DEF
TE Connectivity AMP Connectors T2040162201-001								Female	16 A	Insert	500 V	125 °C	-40 °C	16	Screw	H16B	Ground		PC Polycarbonate	UL94 V-0
TE Connectivity AMP Connectors T2050102101-000								Male	16 A	Insert without Contacts	500 V			10	Crimp	H6B	Ground	CEM DEM	PC Polycarbonate	UL94 V-0
TE Connectivity AMP Connectors T2030001040-000	78.7 µin			Pin	Silver	Crimp	12 AWG
TE Connectivity AMP Connectors T2040102101-001								Male	16 A	Insert	500 V	125 °C	-40 °C	10	Screw	H10B	Ground		PC Polycarbonate	UL94 V-0
TE Connectivity AMP Connectors T2059643101-000								Male	16 A	Insert without Contacts	500 V	125 °C	-40 °C	64	Crimp	H24B	Ground	CEM DEM
TE Connectivity AMP Connectors T2040244201-000								Female	16 A	Insert without Contacts	500 V	125 °C	-40 °C	24 pos	Crimp	H24B	Ground	CE DE	PC Polycarbonate	UL94 V-0	Gray
