EHBNC2B
ActiveSwitchcraft Inc.

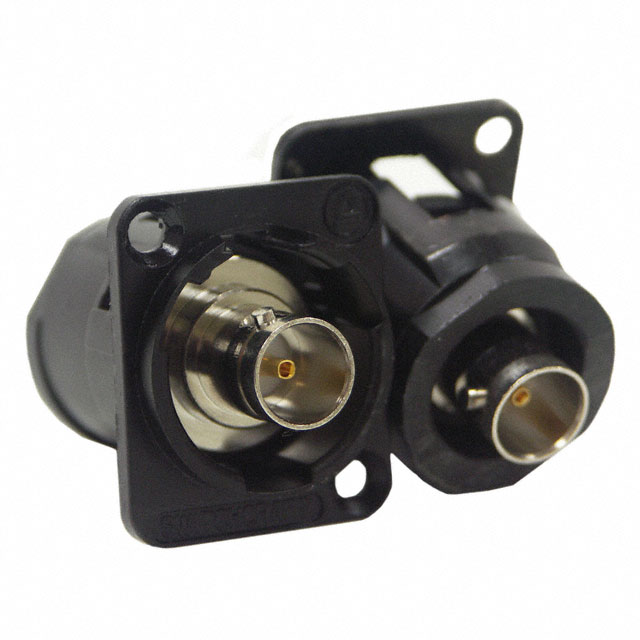

CONN ADAPT JACK-JACK BNC 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHBNC2B
ActiveSwitchcraft Inc.
CONN ADAPT JACK-JACK BNC 75 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EHBNC2B | EHBNC2 Series |
|---|---|---|
| Adapter Series | BNC to BNC | BNC to BNC |
| Adapter Type | Jack to Jack | Jack to Jack |
| Body Finish | Nickel | Nickel |
| Body Material | Copper Alloy | Copper Alloy |
| Center Gender | Female to Female | Female to Female |
| Conversion Type | Same Series | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack | Female Socket, BNC Jack |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Isolated | Mounting Hardware, Isolated |
| Impedance | 75 Ohms | 75 Ohms |
| Mounting Feature | Flange | Flange |
| Style | Straight | Straight |
EHBNC2 Series
CONN ADAPT JACK-JACK BNC 75 OHM
| Part | Features | Adapter Series | Conversion Type | Body Material | Impedance | Body Finish | Convert From (Adapter End) | Adapter Type | Convert To (Adapter End) | Fastening Type | Style | Mounting Feature | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EHBNC2BPKG | Isolated, Mounting Hardware | BNC to BNC | Same Series | Copper Alloy | 75 Ohms | Nickel | BNC Jack, Female Socket | Jack to Jack | BNC Jack, Female Socket | Bayonet Lock | Straight | Flange | Female to Female |
Switchcraft Inc. EHBNC2B | Isolated | BNC to BNC | Same Series | Copper Alloy | 75 Ohms | Nickel | BNC Jack, Female Socket | Jack to Jack | BNC Jack, Female Socket | Bayonet Lock | Straight | Flange | Female to Female |
Switchcraft Inc. EHBNC2PKG | Isolated, Mounting Hardware | BNC to BNC | Same Series | Copper Alloy | 75 Ohms | Nickel | BNC Jack, Female Socket | Jack to Jack | BNC Jack, Female Socket | Bayonet Lock | Straight | Flange | Female to Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.77 | |
| 25 | $ 14.60 | |||
| 100 | $ 12.70 | |||
Description
General part information
EHBNC2 Series
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
