FMC01163-12
ActiveFairview Microwave
CBL ASSY SMAPLUG-TYPE NJACK 12
FMC01163-12
ActiveFairview Microwave
CBL ASSY SMAPLUG-TYPE NJACK 12
Description
General part information
FMC01163-12

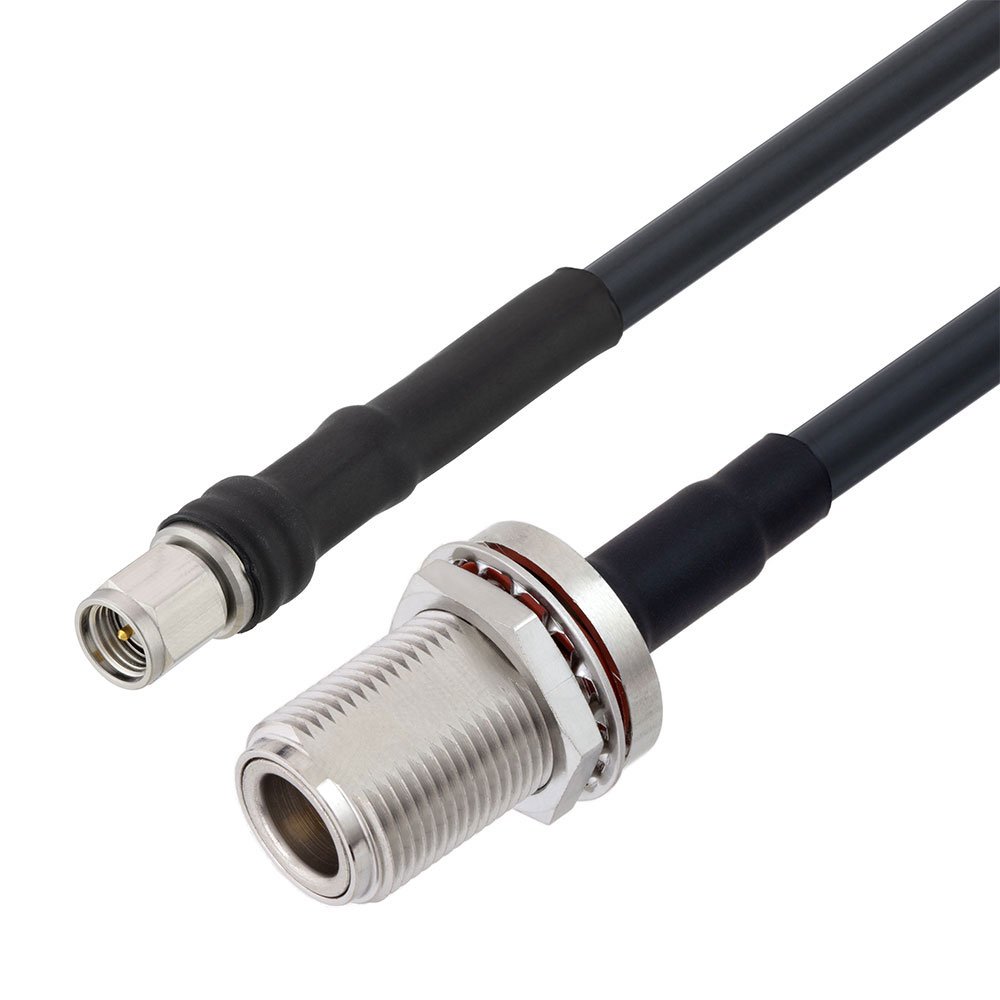

Cable Assembly Coaxial SMA to N-Type LMR 240 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC01163-12 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 240 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
