PIC16LF1933T-I/ML

Active

Microchip Technology

7KB FLASH, 256B RAM, 256B EEPROM, LCD, NANOWATT XLP 28 QFN 6X6X0.9MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

PIC16LF1933T-I/ML

Active

Microchip Technology

7KB FLASH, 256B RAM, 256B EEPROM, LCD, NANOWATT XLP 28 QFN 6X6X0.9MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

PIC16F1933 Series

This versatile 28-pin MCU is also a member of Microchip's extreme low power microcontroller family featuring nanoWatt XLP technology. Debug Support • Integrated debug support on Device. No Debug Header is required • An optional external Debug Header, AC244035 or AC244036, is also available for Debugging support • Debug and Programming support is available via PICkit™ 3, and MPLAB® ® ICD 3 • For additional Debug Header Information, please refer to DS51292.

Technical Specifications

Parameters and characteristics for this part

Specification	PIC16LF1933T-I/ML

A/D Channels	11 count
A/D Resolution (bits)	10 bit
Connectivity	I2C, LINbus, UART, SPI, USART
Core Processor	PIC
Core Size (Bit Width)	8 Bit
EEPROM Size (Depth)	256
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	25
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	28-VQFN Exposed Pad
Package Length	6 mm
Package Name	28-QFN
Package Width	6 mm
Peripherals	Reset, LCD, Brown-out Detect, WDT, PWM, POR
Program Memory Depth	4 K
Program Memory Size	7 KB
Program Memory Type	FLASH
Program Memory Width	14
RAM Size Depth	256
RAM Size Width	8 bit
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	1.8 V

PIC16F1933 Series

Part	Package Name	Mounting Type	Core Processor	Package Width	Package Length	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	A/D Resolution (bits)	A/D Channels	Core Size (Bit Width)	Oscillator Type	RAM Size Width	RAM Size Depth	EEPROM Size (Width)	EEPROM Size (Depth)	Program Memory Depth	Program Memory Size	Program Memory Width	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Peripherals	Program Memory Type	Number of I/O	Speed	Package / Case
Microchip Technology PIC16LF1933-I/SO	28-SOIC	Surface Mount	PIC	7.5 mm	0.295 in	I2C LINbus SPI UART USART	85 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	3.6 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz
Microchip Technology PIC16F1933-E/SS	28-SSOP	Surface Mount	PIC	5.3 mm	0.209 in	I2C LINbus SPI UART USART	125 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	5.5 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz
Microchip Technology PIC16LF1933-E/ML	28-QFN	Surface Mount	PIC	6 mm	6 mm	I2C LINbus SPI UART USART	125 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	3.6 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz	28-VQFN Exposed Pad
Microchip Technology PIC16LF1933-I/ML	28-QFN	Surface Mount	PIC	6 mm	6 mm	I2C LINbus SPI UART USART	85 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	3.6 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz	28-VQFN Exposed Pad
Microchip Technology PIC16F1933T-I/MV	28-UQFN	Surface Mount	PIC	4 mm	4 mm	I2C LINbus SPI UART USART	85 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	5.5 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz	28-UFQFN Exposed Pad

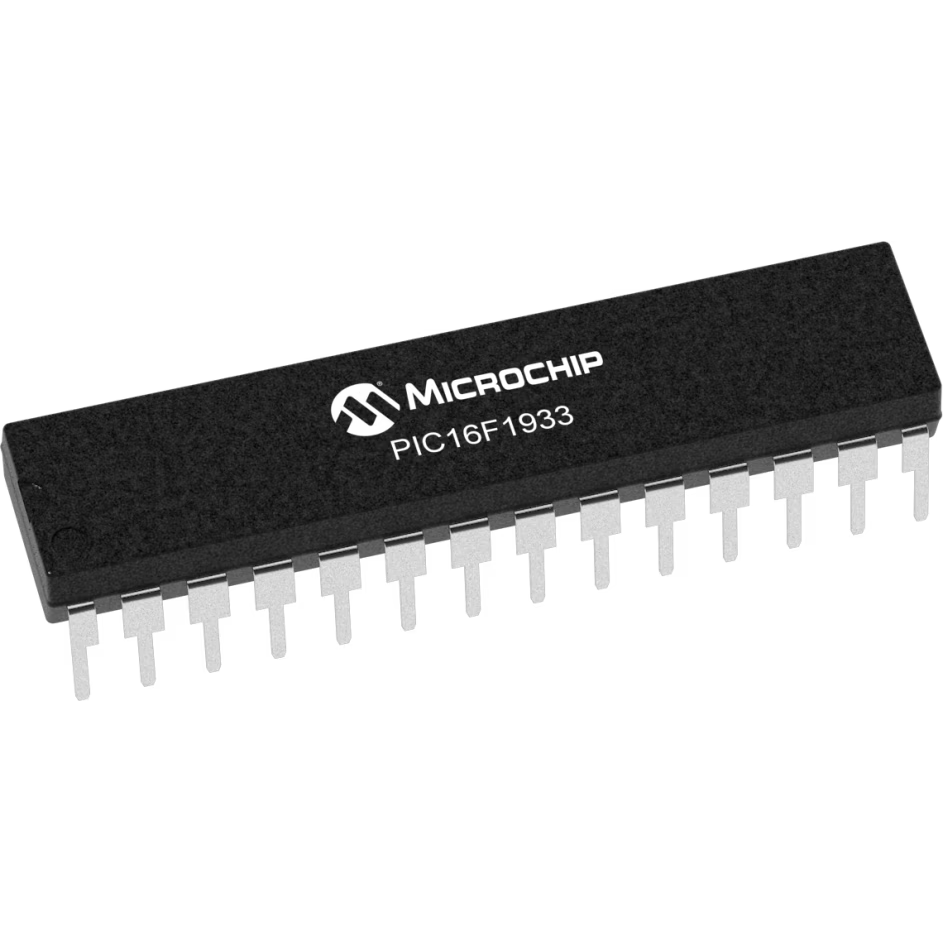

Microchip Technology PIC16F1933-E/SP	28-DIP 28-SPDIP	Through Hole	PIC	7.62 mm	0.3 in	I2C LINbus SPI UART USART	125 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	5.5 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz
Microchip Technology PIC16F1933-E/SO	28-SOIC	Surface Mount	PIC	7.5 mm	0.295 in	I2C LINbus SPI UART USART	125 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	5.5 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz
Microchip Technology PIC16F1933-I/MV	28-UQFN	Surface Mount	PIC	4 mm	4 mm	I2C LINbus SPI UART USART	85 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	5.5 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz	28-UFQFN Exposed Pad
Microchip Technology PIC16F1933-I/SS	28-SSOP	Surface Mount	PIC	5.3 mm	0.209 in	I2C LINbus SPI UART USART	85 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	5.5 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz
Microchip Technology PIC16F1933-E/MV	28-UQFN	Surface Mount	PIC	4 mm	4 mm	I2C LINbus SPI UART USART	125 °C	-40 °C	10 bit	11 count	8 Bit	Internal	8 bit	256	8 bit	256	4 K	7 KB	14	5.5 V	1.8 V	Brown-out Detect LCD POR PWM Reset WDT	FLASH	25	32 MHz	28-UFQFN Exposed Pad
