5100H7LC
ObsoleteVisual Communications Company - VCC
LED YELLOW 1/4"HOLE LOWCUR PNLMN
5100H7LC
ObsoleteVisual Communications Company - VCC
LED YELLOW 1/4"HOLE LOWCUR PNLMN
Description
General part information
5100H7LC

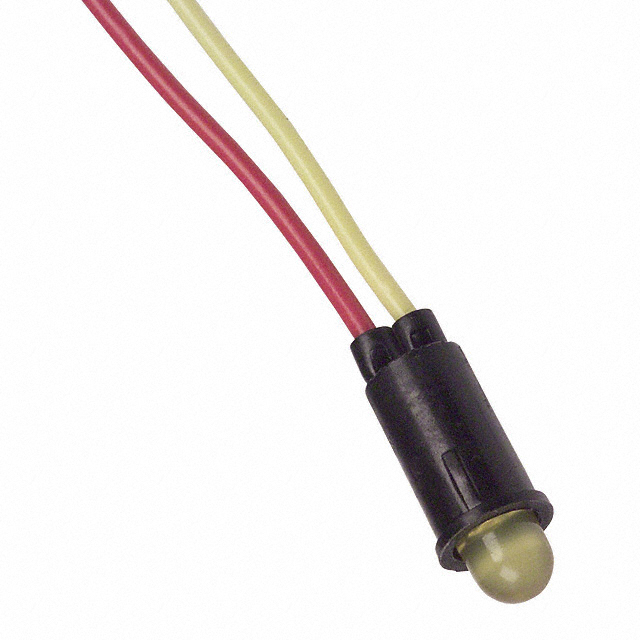

LED Panel Indicator Yellow 1.9V 7mA Wire Leads - 6" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 5100H7LC |
|---|---|
| Current | 7 mA |
| Lamp Color | Yellow |
| Lens Style | Round, Domed Top |
| Millicandela Rating | 2 mcd |
| Panel Cutout Dimension | 0.25 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Termination Length | 6 in |
| Termination Style | Wire Leads |
| Type | LED |
| Voltage | 1.9 V |
| Wavelength - Peak | 585 nm |
