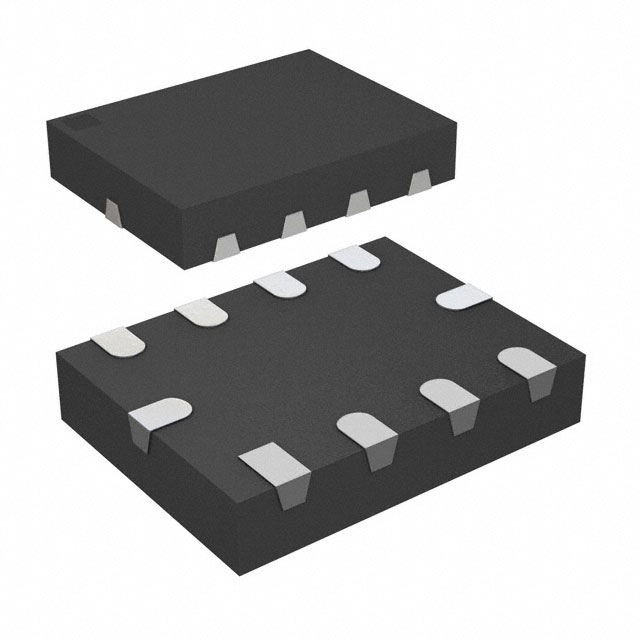

MAX11108AVB+T
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC 12BIT SAR 10UTQFN
Deep-Dive with AI
Search across all available documentation for this part.
MAX11108AVB+T
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC 12BIT SAR 10UTQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MAX11108AVB+T |
|---|---|
| Architecture | SAR |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Input Type | Single Ended |
| Mounting Type | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 bits |
| Number of Inputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-XFQFN |
| Ratio - S/H:ADC | 1:1 |
| Reference Type | External |
| Sampling Rate (Per Second) | 3 M |
| Supplier Device Package | 10-UTQFN (1.6x2.1) |
| Voltage - Supply, Analog [Max] | 3.6 V |
| Voltage - Supply, Analog [Min] | 2.2 V |
| Voltage - Supply, Digital [Max] | 3.6 V |
| Voltage - Supply, Digital [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.81 | |
| 10 | $ 4.63 | |||
| 25 | $ 4.06 | |||
| 100 | $ 3.42 | |||
| 250 | $ 3.12 | |||
| 500 | $ 2.93 | |||
| 1000 | $ 2.77 | |||
| Digi-Reel® | 1 | $ 6.81 | ||
| 10 | $ 4.63 | |||
| 25 | $ 4.06 | |||
| 100 | $ 3.42 | |||
| 250 | $ 3.12 | |||
| 500 | $ 2.93 | |||
| 1000 | $ 2.77 | |||
| Tape & Reel (TR) | 2500 | $ 2.61 | ||
MAX11108 Series
IC ADC 12BIT SAR 10UTQFN
| Part | Number of Bits | Reference Type | Number of A/D Converters | Supplier Device Package | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Number of Inputs | Architecture | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Ratio - S/H:ADC | Sampling Rate (Per Second) | Mounting Type | Configuration | Input Type | Data Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11108AVB+T | 12 bits | External | 1 | 10-UTQFN (1.6x2.1) | 2.2 V | 3.6 V | 1 | SAR | 3.6 V | 2.2 V | 125 °C | -40 °C | 10-XFQFN | 1:1 | 3 M | Surface Mount | S/H-ADC | Single Ended | SPI |
Description
General part information
MAX11108 Series
12 Bit Analog to Digital Converter 1 Input 1 SAR 10-UTQFN (1.6x2.1)
Documents
Technical documentation and resources
No documents available
