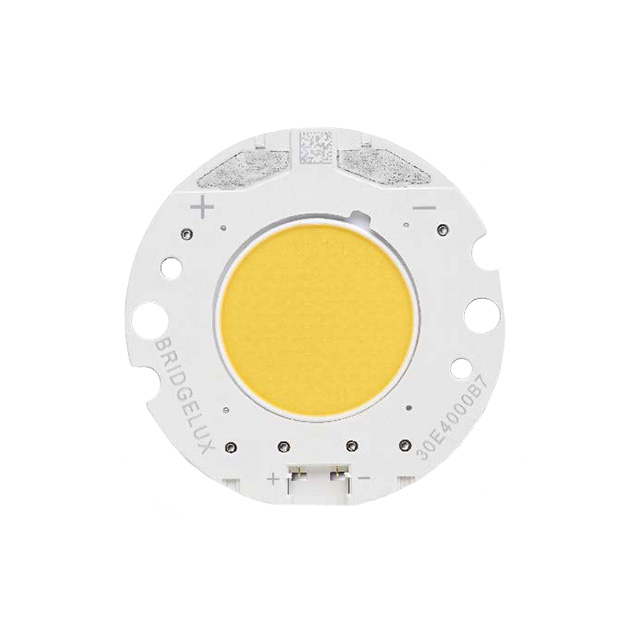

BXRC-50C4001-D-73

Active

BRIDGELUX

LED COB VERO 18 WHT RND 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-50C4001-D-73

Active

BRIDGELUX

LED COB VERO 18 WHT RND 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 8.64

Description

General part information

BXRC-50 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 Vero® 18 Array White, Cool Round

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-50C4001-D-73	BXRC-50 Series

CCT (K)	-	5000 K
Color	Cool, White	Cool, White
Configuration	Round	Starboard, Round
CRI (Color Rendering Index)	70	70 - 90
Current - Max [Max]	2.1 A	1 - 900 mA
Current - Test	1.05 A	1.05 - 900 mA
Features	-	With Connector
Height [z]	1.9 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	18.4 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	163 lm/W	116 - 200 lm/W
Luminous Flux @ Current/Temperature	4826 lm	1114 - 21635 lm
Size / Dimension [diameter]	36.2 mm	20 - 49.2 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	28.3 V	25.3 - 69.4 V

BXRC-50 Series

LED COB VERO WHT STARBRD 5000K

...

Part	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Type	Color	Configuration	Height [z]	CRI (Color Rendering Index)	Viewing Angle	Size / Dimension [diameter]	Current - Test	Lens Type	Voltage - Forward (Vf) (Typ)	CCT (K)	Features	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Temperature - Test
BRIDGELUX BXRC-50G1000-B-04	700 mA	9.9 mm	Chip On Board (COB)	Cool, White	Starboard	1.9 mm	90	120 °	20 mm	350 mA	Flat	26.7 V	5000 K	With Connector
BRIDGELUX BXRC-50G4001-D-73-SE	2.1 A	18.4 mm	Chip On Board (COB)	Cool, White	Round	3.6 mm	90	120 °	36.2 mm	1.05 A	Flat	28.3 V			132 lm/W	3919 lm	85 °C
BRIDGELUX BXRC-50G4001-D-74	2.1 A	18.4 mm	Chip On Board (COB)	Cool, White	Round	1.9 mm	90		36.2 mm	1.05 A	Flat	28.3 V	5000 K	With Connector	130 lm/W	3861 lm	85 °C
BRIDGELUX BXRC-50C1000-B-04	700 mA	9.9 mm	Chip On Board (COB)	Cool, White	Starboard	1.9 mm	70	120 °	20 mm	350 mA	Flat	26.7 V	5000 K	With Connector	140 lm/W	1305 lm
BRIDGELUX BXRC-50C1001-D-73-SE	700 mA	9.9 mm	Chip On Board (COB)	Cool, White	Round	3.6 mm	70	120 °	30.8 mm	350 mA	Flat	25.3 V			158 lm/W	1400 lm	85 °C
BRIDGELUX BXRC-50C4001-B-73	1.8 A	18.4 mm	Chip On Board (COB)	Cool, White	Round	1.9 mm	70	120 °	36.2 mm	900 mA	Flat	33.9 V			163 lm/W	4963 lm	85 °C
BRIDGELUX BXRC-50E1001-B-74-SE	540 mA	9.9 mm	Chip On Board (COB)	Cool, White	Round	3.6 mm	80	120 °	30.8 mm	270 mA	Flat	33.8 V	5000 K		149 lm/W	1361 lm	85 °C
BRIDGELUX BXRC-50E4001-C-83	3 A	18.5 mm	Chip On Board (COB)	Cool, White	Round	1.8 mm	80	120 °	36.2 mm	1.05 A	Flat	33.9 V			187 lm/W	6664 lm
BRIDGELUX BXRC-50E1000-B-04	700 mA	9.9 mm	Chip On Board (COB)	Cool, White	Starboard	1.9 mm	80	120 °	20 mm	350 mA	Flat	26.7 V	5000 K	With Connector
BRIDGELUX BXRC-50E10K1-B-74	3.6 A	29.2 mm	Chip On Board (COB)	Cool, White	Round	1.9 mm	80	120 °	49.2 mm	1.8 A	Flat	52 V	5000 K		171 lm/W	16004 lm
