1-794406-0
ActiveTE Connectivity AMP Connectors

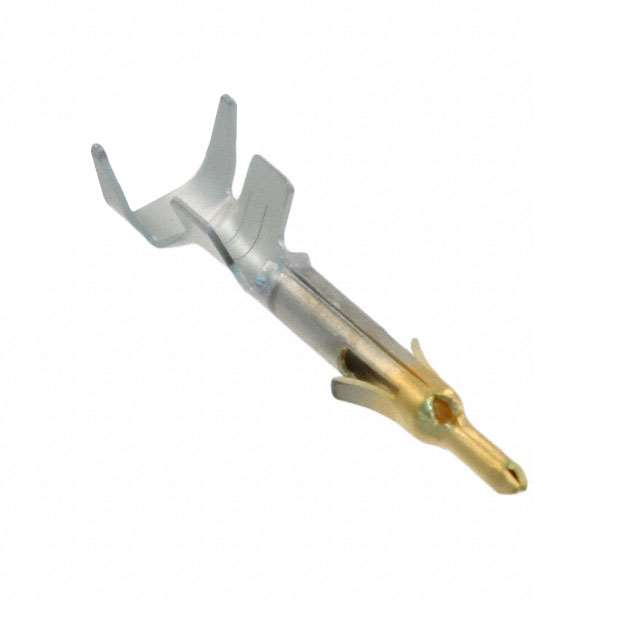

CONN PIN 16-20AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-794406-0
ActiveTE Connectivity AMP Connectors
CONN PIN 16-20AWG GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794406-0 | 794406 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Brass | Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Stamped | Power, Stamped, Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
794406 Series
CONN PIN 16-20AWG GOLD CRIMP
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Contact Finish | Type |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794406-3 | 0.76 Ám | 30 Áin | Crimp | Pin | 16 AWG | 20 AWG | Brass | Gold | Power, Stamped |
TE Connectivity AMP Connectors 1-794406-0 | 0.76 Ám | 30 Áin | Crimp | Pin | 16 AWG | 20 AWG | Brass | Gold | Stamped |
TE Connectivity AMP Connectors 794406-1 | Crimp | Pin | 16 AWG | 20 AWG | Brass | Tin | Stamped |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.73 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 4500 | $ 0.47 | ||
| 9000 | $ 0.45 | |||
| 13500 | $ 0.43 | |||
| 22500 | $ 0.42 | |||
Description
General part information
794406 Series
Pin Contact Gold Crimp 16-20 AWG Stamped
