SCOTCHFIL
Active3M

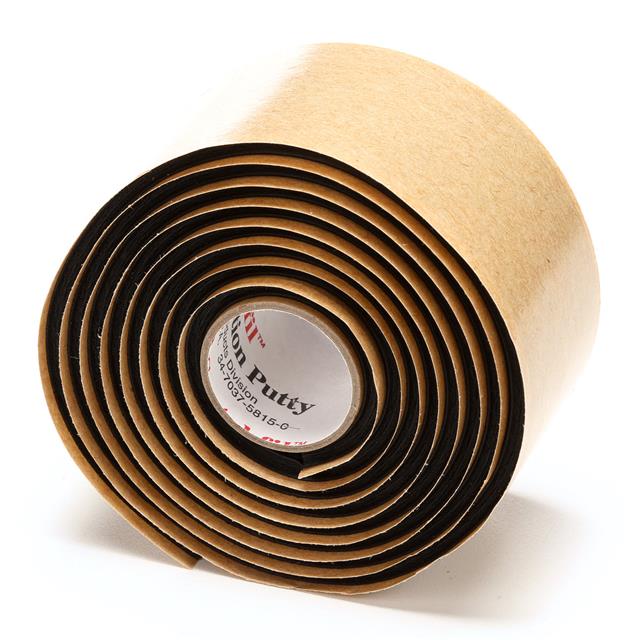

TAPE, ELECTRICAL INSULATION, RUBBER, BLACK, 60" L X 1.5" W
Deep-Dive with AI
Search across all available documentation for this part.
SCOTCHFIL
Active3M
TAPE, ELECTRICAL INSULATION, RUBBER, BLACK, 60" L X 1.5" W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SCOTCHFIL | SCOTC Series |
|---|---|---|
| Adhesive | Rubber, Self Fusing | Rubber, Self Fusing |
| Color | Black | Black |
| Features | - | Green, Heat Resistant |
| For Use With/Related Products | - | Electronics |
| Length | 1.5 m | 1.5 m |
| Length | 5 ' | 5 ' |
| Length | 1.7 yd | 1.7 yd |
| Shelf Life | 60 Months | 24 - 60 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Storage/Refrigeration Temperature | - | 27 - 80 °F |
| Storage/Refrigeration Temperature | - | 10 °C |
| Storage/Refrigeration Temperature | - | 81 °F |
| Storage/Refrigeration Temperature | - | 27 °C |
| Tape Type | Mastic Sealing Tape | Mastic Sealing Tape |
| Temperature Range [Max] | 80 °C | 80 °C |
| Temperature Range [Min] | 0 °C | 0 °C |
| Thickness | 0.125 in | 0.125 in |
| Thickness | 3.175 mm | 3.175 mm |
| Thickness | 125 mils | 125 mils |
| Thickness | 0.125 " | 0.125 " |
| Type | - | Epoxy |
| Usage | Electrically Insulating | Electrically Insulating |
| Width | 1.5 " | 1.5 " |
| Width | 38.1 mm | 38.1 mm |
| Width | 1 1/2 | 1 1/2 |
SCOTC Series
TAPE, ELECTRICAL INSULATION, RUBBER, BLACK, 60" L X 1.5" W
| Part | Width | Width | Width | Temperature Range [Min] | Temperature Range [Max] | Length | Length | Length | Color | Usage | Shelf Life | Thickness | Thickness | Thickness | Thickness | Shelf Life Start | Adhesive | Tape Type | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature | Storage/Refrigeration Temperature | For Use With/Related Products | Features | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.5 " | 38.1 mm | 1 1/2 | 0 °C | 80 °C | 1.5 m | 5 ' | 1.7 yd | Black | Electrically Insulating | 60 Months | 0.125 in | 3.175 mm | 125 mils | 0.125 " | Date of Manufacture | Rubber, Self Fusing | Mastic Sealing Tape | ||||||||
60 Months | Date of Manufacture | 27 °C, 80 °F | 10 °C | ||||||||||||||||||||||
24 Months | Date of Manufacture | 81 °F | 27 °C | Electronics | Green, Heat Resistant | Epoxy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SCOTC Series
Mastic Sealing Tape Tape Rubber, Self Fusing Adhesive Black 1.50" (38.10mm) 1 1/2" X 5' (1.5m) 1.7 yds
