AN220206-001
ActiveSevskiy GmbH

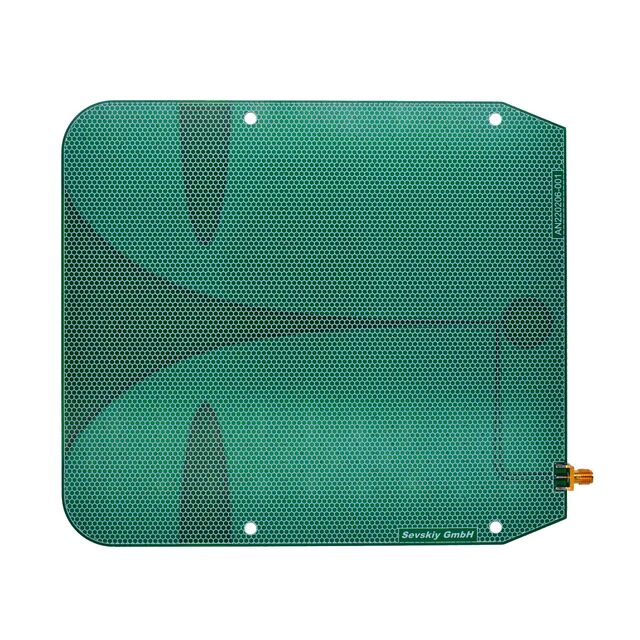

RF ANT VIVALDI UWB 1.2-9GHZ 8DBI
AN220206-001
ActiveSevskiy GmbH
RF ANT VIVALDI UWB 1.2-9GHZ 8DBI
Description
General part information
AN220206-001
RF ANTENNA 5G, GSM, IoT, ISM, LTE, RFID, UMTS, UWB Vivaldi SMA Female Screw Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AN220206-001 |
|---|---|
| Antenna Type | Vivaldi |
| Applications | UWB, 5G, LTE, RFID, UMTS, IoT, GSM, ISM |
| Frequency (Center/Band) | 5.1 GHz |
| Frequency Group | Ultra Wide Band |
| Frequency Range (Max) | 9 GHz |
| Frequency Range (Min) | 1.2 GHz |
| Gain | 8 dBi |
| Height (Max) | 0.063 in |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| Return Loss | -10 dB |
| RF Family/Standard | UWB |
| Termination Type | SMA Female |
| VSWR | 1.92 |
