RG55-SM-NFBH(QTY:25m)
ActiveMcGill Microwave Systems
RG55 ASSY SMA MALE-N FEMALE BH 2
RG55-SM-NFBH(QTY:25m)
ActiveMcGill Microwave Systems
RG55 ASSY SMA MALE-N FEMALE BH 2
Description
General part information
RG55-SM-NFBH(QTY:25m)

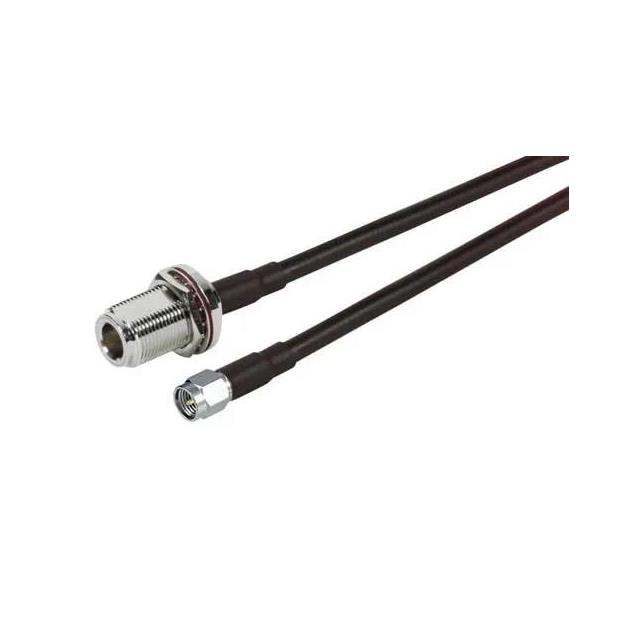

Cable Assembly Coaxial SMA to N-Type RG-55 984.3" (25.0m) 82.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG55-SM-NFBH(QTY:25m) |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 55 |
| Length | 984.3 in |
| Style | SMA, N-Type |
