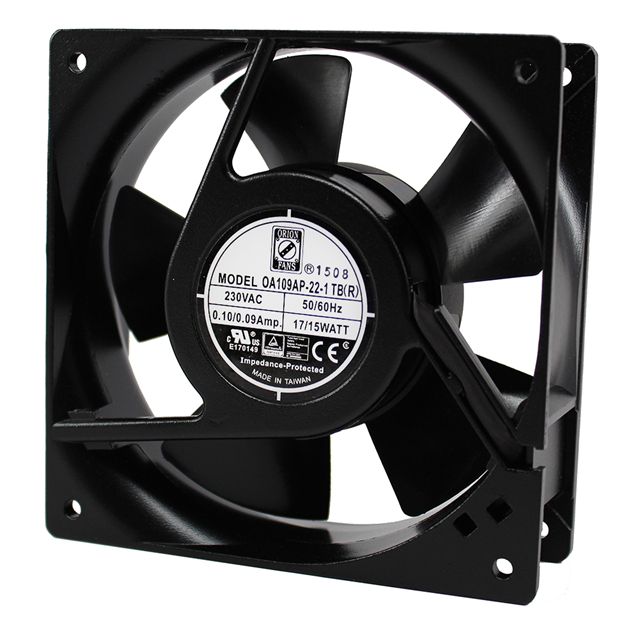

OA109AP-22-1TBR
ActiveOrion Fans
AC FAN, BALL, 120MM, 3100RPM, 230V ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMiscellaneous EN
OA109AP-22-1TBR
ActiveOrion Fans
AC FAN, BALL, 120MM, 3100RPM, 230V ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsMiscellaneous EN
Technical Specifications
Parameters and characteristics for this part
| Specification | OA109AP-22-1TBR |
|---|---|
| Air Flow | 99 CFM |
| Air Flow | 2.77 mł/min |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Reverse Air Flow |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 47 dB |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 15 W |
| RPM | 3100 RPM |
| Size / Dimension [x] | 119.5 mm |
| Size / Dimension [z] | 119.5 mm |
| Static Pressure | 0.33 in H2O |
| Static Pressure | 82.2 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 230 VAC |
| Voltage Range [Max] | 260 VAC |
| Voltage Range [Min] | 160 VAC |
| Width [y] | 38.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA109AP-22-1TBR
Fan Tubeaxial 230VAC Square - 119.5mm L x 119.5mm H Ball 99.0 CFM (2.77m³/min) 2 Terminals
