Description
General part information

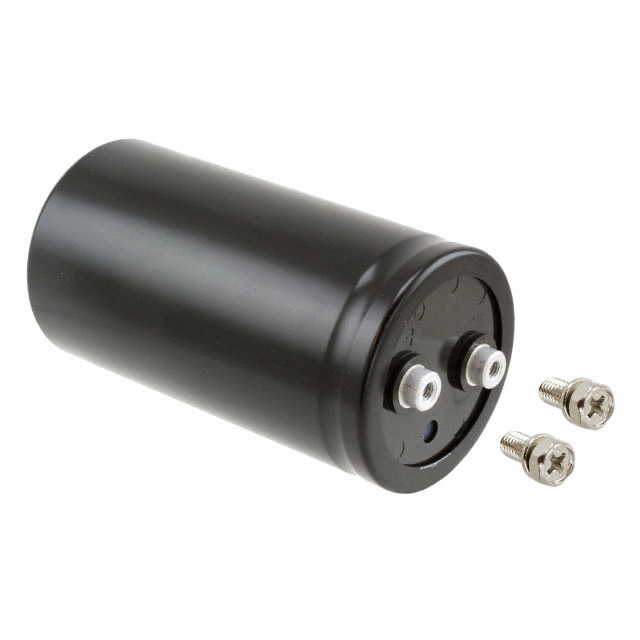

63LSQ68000MNB64X119
68000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 63LSQ68000MNB64X119 |
|---|---|
| Applications | General Purpose |
| Capacitance | 68 mF |
| Height - Seated (Max) | 4.803 in |
| Lead Spacing | 1.11 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 15 A, 16.5 A |
| Size / Dimension Diameter | 2.52 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
