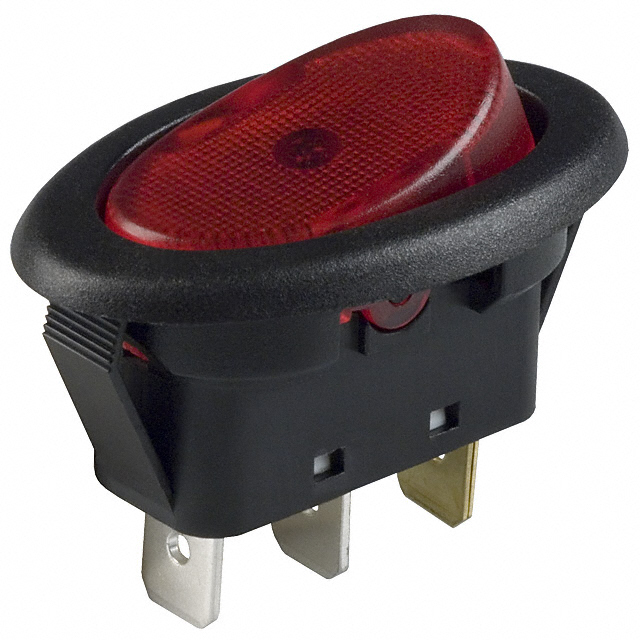

CLS-RO11A12251R
ActiveLumex Opto/Components Inc.
SWITCH ROCKER SPST 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS-RO11A12251R
ActiveLumex Opto/Components Inc.
SWITCH ROCKER SPST 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLS-RO11A12251R | CLS-RO11 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Oval - Illuminated | Oval - Illuminated |
| Circuit | SPST | SPST |
| Color - Actuator/Cap | Red | Green, Yellow, Black, Red, Blue |
| Current Rating (Amps) | 20 A | 20 A |
| Illumination Type, Color | Red, LED | LED, Green, Yellow, Red, Blue |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Panel Mount, Threaded Body with Nut |
| Panel Cutout Dimensions | - | 12.2 mm |
| Panel Cutout Dimensions [x] | 35.2 mm | 35.2 mm |
| Panel Cutout Dimensions [y] | 17.8 mm | 17.8 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V | 12 V |
CLS-RO11 Series
SWITCH ROCKER SPST 20A 12V
| Part | Voltage Rating - DC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Current Rating (Amps) | Actuator Marking | Actuator Type | Circuit | Mounting Type | Color - Actuator/Cap | Illumination Type, Color | Switch Function | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. CLS-RO11A12251G | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount, Snap-In | Green | Green, LED | On-Off | |
Lumex Opto/Components Inc. CLS-RO11A12251Y | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount, Snap-In | Yellow | LED, Yellow | On-Off | |
Lumex Opto/Components Inc. CLS-RO11A12250R | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount, Threaded Body with Nut | Black | LED, Red | On-Off | 12.2 mm | |||
Lumex Opto/Components Inc. CLS-RO11A12250G | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount, Threaded Body with Nut | Black | Green, LED | On-Off | 12.2 mm | |||
Lumex Opto/Components Inc. CLS-RO11A12251R | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount, Snap-In | Red | LED, Red | On-Off | |
Lumex Opto/Components Inc. CLS-RO11A12250Y | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount, Threaded Body with Nut | Black | LED, Yellow | On-Off | 12.2 mm | |||
Lumex Opto/Components Inc. CLS-RO11A12250B | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount, Threaded Body with Nut | Black | Blue, LED | On-Off | 12.2 mm | |||
Lumex Opto/Components Inc. CLS-RO11A12251B | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount, Snap-In | Blue | Blue, LED | On-Off |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLS-RO11 Series
Rocker Switch SPST 20A (DC) Panel Mount, Snap-In
