CIRH03T16S1SCNF80M32V0
ActiveTE Connectivity AMP Connectors

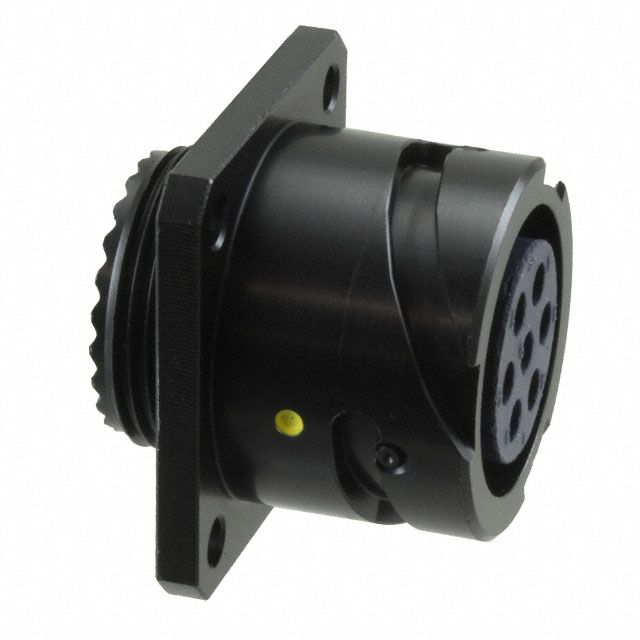

CONN RCPT HSNG FMALE 7POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CIRH03T16S1SCNF80M32V0
ActiveTE Connectivity AMP Connectors
CONN RCPT HSNG FMALE 7POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIRH03T16S1SCNF80M32V0 | CIRH03 Series |
|---|---|---|
| Connector Type | Receptacle Housing | Receptacle Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 16S | 16S |
| Contact Size | - | 8 - 16 |
| Contact Type | Crimp | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Rubber, Halogen Free | Rubber, Halogen Free |
| Mounting Feature | Flange | Flange |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 7 | 6 - 60 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Shell Finish | Zinc Cobalt | Zinc Cobalt |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 16S-1 | 18-11, 40-A60, 16S-1, 40-A35, 20-7, 16-10, 18-12, 14S-6, 32-A13, 36-A22 |
| Shell Size - Insert | - | 18 - 32 |
| Shell Size - Insert | - | 10 - 76 |
| Shielding | Unshielded | Unshielded |
| Type | For Female Sockets | For Female Sockets, For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 23.44 | |
CIRH03 Series
CONN RCPT HSNG FMALE 5POS PNL MT
| Part | Contact Type | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Finish | Contact Size | Note | Type | Orientation | Contact Shape | Shell Size - Insert | Ingress Protection | Fastening Type | Shielding | Mounting Feature | Insert Material | Housing Color | Number of Positions | Contact Size | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CIRH03T1811SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Female Sockets | N | Circular | 18-11 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | ||||
TE Connectivity AMP Connectors CIRH03T40A60PCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 16 | Contacts Not Included | For Male Pins | N | Circular | 40-A60 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 60 | |||
TE Connectivity AMP Connectors CIRH03T1811PCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Male Pins | N | Circular | 18-11 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | ||||
TE Connectivity AMP Connectors CIRH03T16S1SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | Contacts Not Included | For Female Sockets | N | Circular | 16S-1 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 7 | 16S | |||
TE Connectivity AMP Connectors CIRH03T40A35PCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Male Pins | N | Circular | 40-A35 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 35 | |||
TE Connectivity AMP Connectors CIRH03T2410PCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 8 | Contacts Not Included | For Male Pins | N | Circular | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 7 | 24 | 10 | ||
TE Connectivity AMP Connectors CIRH03T207SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 16 | Contacts Not Included | For Female Sockets | N | Circular | 20-7 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 8 | |||
TE Connectivity AMP Connectors CIRH03T1610PCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Male Pins | N | Circular | 16-10 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | ||||
TE Connectivity AMP Connectors CIRH03T2821SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 16 | Contacts Not Included | For Female Sockets | N | Circular | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 37 | 28 | 21 | ||
TE Connectivity AMP Connectors CIRH03T40A35SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Female Sockets | N | Circular | 40-A35 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 35 | |||
TE Connectivity AMP Connectors CIRH03T1812SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 16 | Contacts Not Included | For Female Sockets | N | Circular | 18-12 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 6 | |||
TE Connectivity AMP Connectors CIRH03T14S6PCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | Contacts Not Included | For Male Pins | N | Circular | 14S-6 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 6 | 16S | |||
TE Connectivity AMP Connectors CIRH03T32A13SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Female Sockets | N | Circular | 32-A13 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 13 | |||
TE Connectivity AMP Connectors CIRH03T1819SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 16 | Contacts Not Included | For Female Sockets | N | Circular | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 10 | 18 | 19 | ||
TE Connectivity AMP Connectors CIRH03T3276SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Female Sockets | N | Circular | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 19 | 32 | 76 | ||
TE Connectivity AMP Connectors CIRH03T36A22SCNF80M32V0 | Crimp | Aluminum Alloy | -55 °C | 200 °C | Receptacle Housing | Zinc Cobalt | 12 | Contacts Not Included | For Female Sockets | N | Circular | 36-A22 | IP67 - Dust Tight, Waterproof | Bayonet Lock | Unshielded | Flange | Rubber, Halogen Free | Black | 22 positions |
Description
General part information
CIRH03 Series
7 Position Circular Connector Receptacle Housing Panel Mount
