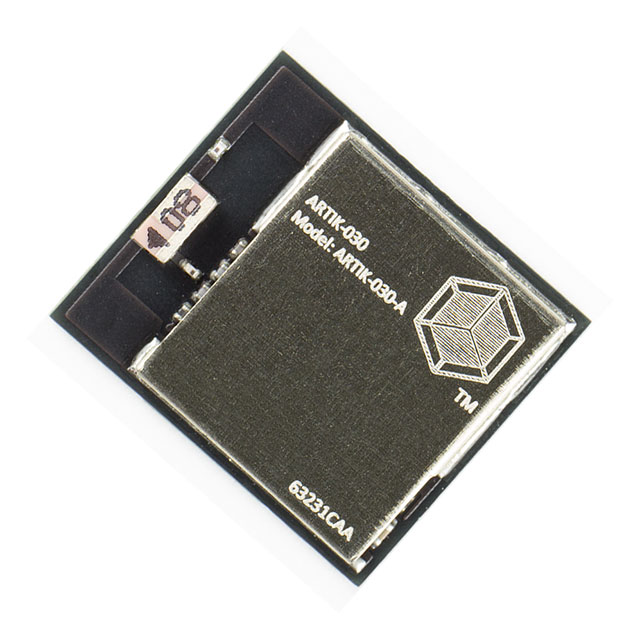

ARTIK-030-AV1R

Obsolete

Samsung Semiconductor, Inc.

RF TXRX MOD 802.15.4 CHIP SMD

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

RF TXRX MOD 802.15.4 CHIP SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

ARTIK-030 ZIGBEE THREAD MODULE

Part	Type	Mounting Type	Platform	Board Type	Contents	Utilized IC / Part	Core Processor	Current - Receiving	Antenna Type	RF Family/Standard	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Frequency	Serial Interfaces	Memory Size [custom]	Memory Size [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Power - Output	Data Rate
Samsung Semiconductor, Inc. ARTIK-030-AV2R	MPU	Fixed	ARTIK-030 Zigbee Thread Module	Evaluation Platform	Board(s)	ARTIK 030	ARM® Cortex®-M4F
Samsung Semiconductor, Inc. ARTIK-030-AV1R		Surface Mount						9.8 mA	Integrated, Chip	802.15.4	1.85 V	3.8 V	-99 dBm	2.4 GHz	I2C, I2S, SPI, UART	32 kB	256 kB	85 °C	-40 °C	8.2 mA	10 dBm	250 KBd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 8.00

General part information

802.15.4 Transceiver Module 2.4GHz Integrated, Chip Surface Mount

Technical documentation and resources

No documents available
