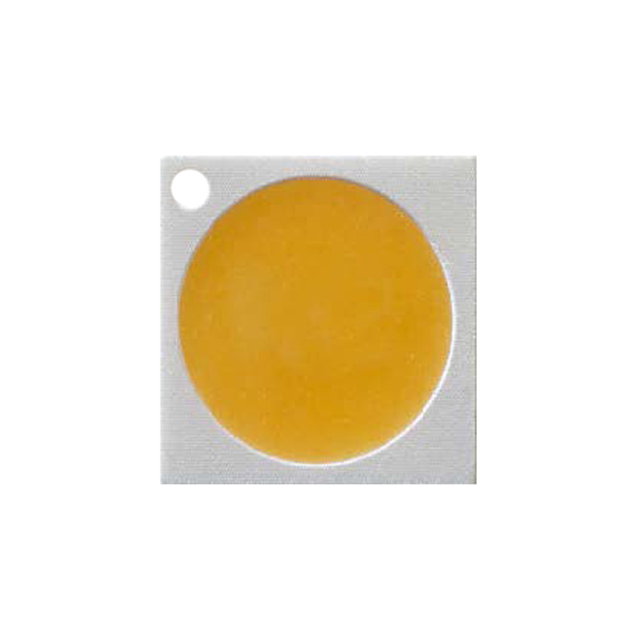

BXEM-27E-21H-3A-00-0-0

Obsolete

BRIDGELUX

LED GEN2 WARM WHT 2700K 3030

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED GEN2 WARM WHT 2700K 3030

Technical Specifications

Parameters and characteristics for this part

Specification	BXEM-27E-21H-3A-00-0-0

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	400 mA
Current - Test	300 mA
Flux @ 85°C, Current - Test	99 lm
Height - Seated (Max) [Max]	0.024 in
Height - Seated (Max) [Max]	0.62 mm
Lumens/Watt @ Current - Test	110 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [custom]	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3 V

LED GEN2 WARM WHT 2700K 3030

Part	CCT (K)	Supplier Device Package	Current - Max [Max]	Lumens/Watt @ Current - Test	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Flux @ 85°C, Current - Test	Thermal Resistance of Package [custom]	Package / Case	Package / Case	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type
BRIDGELUX BXEM-27E-21H-3A-00-0-0	2700 K	3030	400 mA	110 lm/W	120 °	300 mA	3 V	0.118 in	3 mm	3 mm	0.118 in	Warm, White	99 lm	12 °C/W	1212	3030 Metric	80	0.024 in	0.62 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Gen2 White, Warm 2700K 3V 300mA 120° 1212 (3030 Metric)
