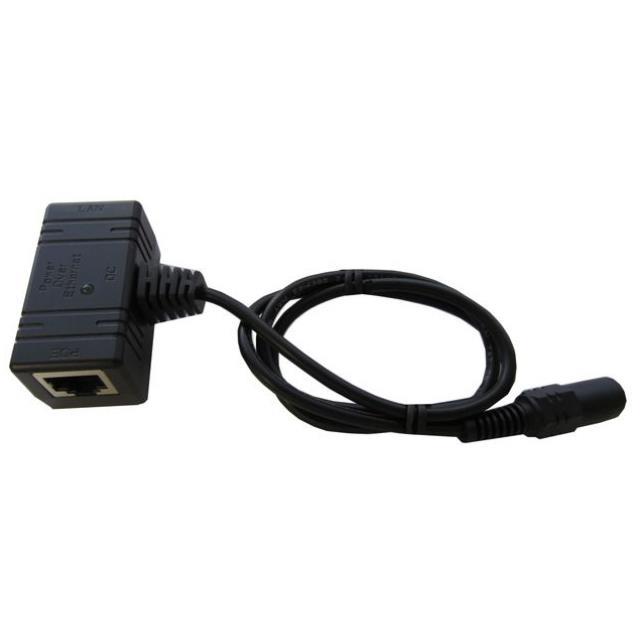

POE-INJ-1000-S

Active

Tycon Systems Inc.

GIGABIT POE INJECTOR WITH LED FO

Search across all available documentation for this part.

Active

Tycon Systems Inc.

GIGABIT POE INJECTOR WITH LED FO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	POE-INJ-1000-S	POE-I Series

Current - Output	-	2.25 A
Data Rate	-	10 - 1000 Mbps
For Use With/Related Products	Ethernet, RJ45	Ethernet, RJ45, Ethernet, Cat5
Input Connector	-	RJ45 (Data, Power)
Mounting Type	-	Desktop
Number of Ports	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Connector	-	RJ45 (Data, Power)
Power (Watts) - Per Port	-	130 W
Size / Dimension	-	71.1 mm
Size / Dimension	-	2.1 in
Size / Dimension	-	24.13 mm
Size / Dimension	-	2.8 in
Size / Dimension	-	24.1 mm
Size / Dimension	-	53.3 mm
Type	PoE Injector	PoE Injector/Splitter, PoE Injector, Splitter
Voltage - Input	-	58 V
Voltage - Input	-	5 V

GIGABIT POE INJECTOR/SPLITTER. I

Part	Type	For Use With/Related Products	Output Connector	Power (Watts) - Per Port	Current - Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Ports	Voltage - Input [Max]	Voltage - Input [Min]	Data Rate	Input Connector
Tycon Systems Inc. POE-INJ-1000-DIN	PoE Injector/Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-INJ-1000-S	PoE Injector	Ethernet, RJ45
Tycon Systems Inc. POE-INJ-1000-WT	PoE Injector/Splitter, Splitter	Ethernet, RJ45	RJ45 (Data, Power)	130 W	2.25 A	71.1 mm	2.1 in	24.13 mm	2.8 in	24.1 mm	53.3 mm	85 °C	-40 °C	Desktop	1	58 V	5 V	10 Mbps, 100 Mbps, 1000 Mbps	RJ45 (Data, Power)
Tycon Systems Inc. POE-INJ-LED-S	PoE Injector	Cat5, Ethernet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	600	$ 10.50

General part information

PoE Injector Ethernet, RJ45
