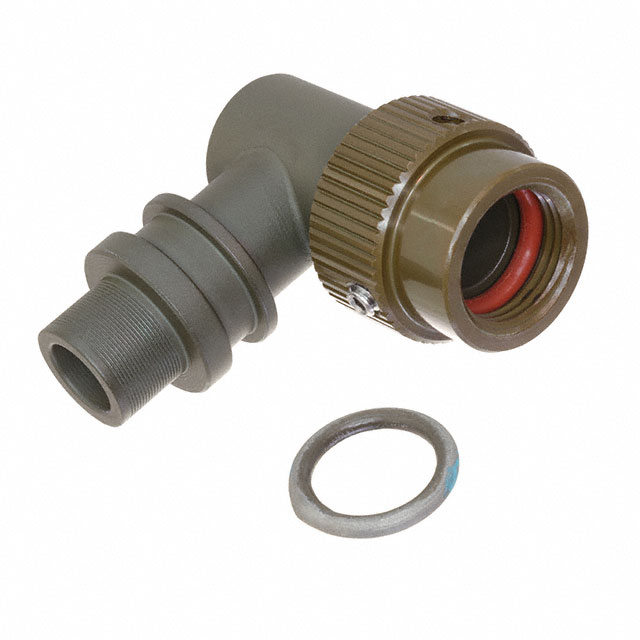

CONN BACKSH ADPT SZ8 7/16-28
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TXR21AB90-0804AI2
ActiveTE Connectivity AMP Connectors
CONN BACKSH ADPT SZ8 7/16-28
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TXR21AB90-0804AI2 | TXR21AB90 Series |
|---|---|---|
| Cable Exit | 90 ° | 90 ° |
| Color | Olive Drab | Olive Drab |
| Diameter - Outside [diameter] | 0.711 in | 0.711 - 1.089 in |
| Diameter - Outside [diameter] | 18.05 mm | 18.05 - 27.65 mm |
| Features | Tinel Lock | Tinel Lock |
| For Use With/Related Products | MIL-DTL-26482 Series I Class E, F Connectors | MIL-DTL-26482 Series I Class E, F Connectors |
| Includes | 1 Tinel Ring, 2 Screws, 1 Braid, 1 O-Ring, 1 Backshell | 1 Tinel Ring, 2 Screws, 1 Braid, 1 O-Ring, 1 Backshell |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | Cadmium | Cadmium |
| Shell Size - Insert | 8 | 8 - 14 |
| Shielding | Shielded | Shielded |
| Thread Size | 7/16-28 UNEF | 13/16-20 UNEF, 7/16-28 UNEF |
| Type | Backshell, Heat Shrink Adapter | Backshell, Heat Shrink Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 90.84 | |
TXR21AB90 Series
CONN BACKSH ADPT SZ14 13/16-20
| Part | Color | Shell Size - Insert | Shielding | Includes | Features | For Use With/Related Products | Thread Size | Cable Exit | Plating | Type | Material | Diameter - Outside [diameter] | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors TXR21AB90-1404AI | Olive Drab | 14 | Shielded | 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws | Tinel Lock | MIL-DTL-26482 Series I Class E, F Connectors | 13/16-20 UNEF | 90 ° | Cadmium | Backshell, Heat Shrink Adapter | Aluminum Alloy | 1.089 in | 27.65 mm |
TE Connectivity AMP Connectors TXR21AB90-0804AI2 | Olive Drab | 8 | Shielded | 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring, 2 Screws | Tinel Lock | MIL-DTL-26482 Series I Class E, F Connectors | 7/16-28 UNEF | 90 ° | Cadmium | Backshell, Heat Shrink Adapter | Aluminum Alloy | 0.711 in | 18.05 mm |
Description
General part information
TXR21AB90 Series
Olive Drab Connector Backshell, Heat Shrink Adapter 7/16-28 UNEF 8
