LBW6MB-M1T5G
ActiveIDEC Corporation

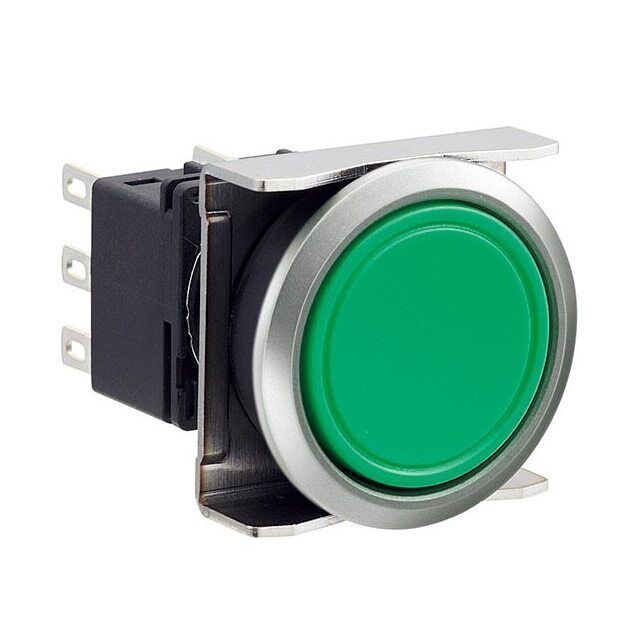

LBW FLUSH PB MOME. GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LBW6MB-M1T5G
ActiveIDEC Corporation
LBW FLUSH PB MOME. GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LBW6MB-M1T5G | LBW6MB Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | 3PDT, SPDT, DPDT |
| Color - Actuator/Cap | Green | Yellow, Black, Green, Red, Blue, White |
| Current Rating (Amps) | 5 A | 5 - 100 mA |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 2000000 Cycles | 250000 - 2000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 22.3 mm |
| Switch Function | On-Mom | On-Mom, On-On |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | PC Pin, Quick Connect, Solder |
| Termination Style | 2.8 mm | 2.8 mm |
| Type | Standard | Standard |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | 30 V | 30 V |
LBW6MB Series
INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, 22 MM, 3PDT, MOMENTARY, ROUND FLUSH, YELLOW
...
| Part | Actuator Type | Actuator Marking | Circuit | Type | Voltage Rating - DC | Mounting Type | Ingress Protection | Current Rating (Amps) | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Electrical Life | Mechanical Life | Switch Function | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation LBW6MB-M1T3VY | Button, Flush, Round | No Marking | 3PDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | PC Pin | -25 °C | 60 °C | 125 V | 50000 Cycles | 2000000 Cycles | On-Mom | 22.3 mm | Yellow | ||
IDEC Corporation LBW6MB-A1T1VB | Button, Flush, Round | No Marking | SPDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | PC Pin | -25 °C | 60 °C | 125 V | 50000 Cycles | 250000 Cycles | On-On | 22.3 mm | Black | ||
IDEC Corporation LBW6MB-M1T1Y | Button, Flush, Round | No Marking | SPDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | Quick Connect, Solder | -25 °C | 60 °C | 125 V | 50000 Cycles | 2000000 Cycles | On-Mom | 22.3 mm | Yellow | 0.11 in | 2.8 mm |
IDEC Corporation LBW6MB-A1T2Y | Button, Flush, Round | No Marking | DPDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | Quick Connect, Solder | -25 °C | 60 °C | 125 V | 50000 Cycles | 250000 Cycles | On-On | 22.3 mm | Yellow | 0.11 in | 2.8 mm |
IDEC Corporation LBW6MB-M1T6Y | Button, Flush, Round | No Marking | DPDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 5 A | Quick Connect, Solder | -25 °C | 60 °C | 125 V | 50000 Cycles | 2000000 Cycles | On-Mom | 22.3 mm | Yellow | 0.11 in | 2.8 mm |
IDEC Corporation LBW6MB-M1T3VB | Button, Flush, Round | No Marking | 3PDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | PC Pin | -25 °C | 60 °C | 125 V | 50000 Cycles | 2000000 Cycles | On-Mom | 22.3 mm | Black | ||
IDEC Corporation LBW6MB-A1T1VG | Button, Flush, Round | No Marking | SPDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | PC Pin | -25 °C | 60 °C | 125 V | 50000 Cycles | 250000 Cycles | On-On | 22.3 mm | Green | ||
IDEC Corporation LBW6MB-M1T2Y | Button, Flush, Round | No Marking | DPDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | Quick Connect, Solder | -25 °C | 60 °C | 125 V | 50000 Cycles | 2000000 Cycles | On-Mom | 22.3 mm | Yellow | 0.11 in | 2.8 mm |
IDEC Corporation LBW6MB-A1T7R | Button, Flush, Round | No Marking | 3PDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 5 A | Quick Connect, Solder | -25 °C | 60 °C | 125 V | 50000 Cycles | 250000 Cycles | On-On | 22.3 mm | Red | 0.11 in | 2.8 mm |
IDEC Corporation LBW6MB-A1T2VR | Button, Flush, Round | No Marking | DPDT | Standard | 30 V | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 100 mA | PC Pin | -25 °C | 60 °C | 125 V | 50000 Cycles | 250000 Cycles | On-On | 22.3 mm | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.33 | |
Description
General part information
LBW6MB Series
Pushbutton Switch SPDT Standard Panel Mount, Front
