1376385-1
ActiveTE Connectivity AMP Connectors

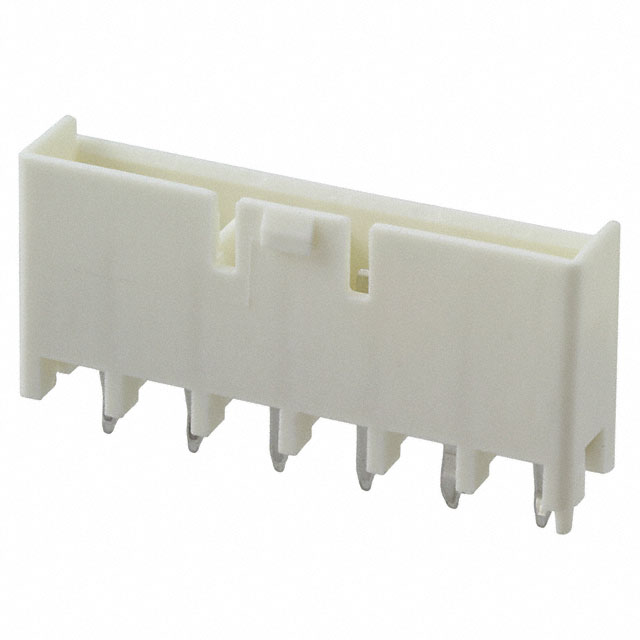

CONN HEADER VERT 6POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1376385-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 6POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1376385-1 | 1376385 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post | 3.5 mm | 3.5 mm |
| Contact Length - Post | 0.138 in | 0.138 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Board Guide | Board Guide |
| Insulation Color | Natural | Blue, Red, Natural, Yellow |
| Insulation Height | 14.1 mm | 14.1 mm |
| Insulation Height | 0.555 in | 0.555 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated Stacking Heights | 19.4 mm | 19.4 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 5 mm | 5 mm |
| Pitch - Mating | 0.197 " | 0.197 " |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder |
| Voltage Rating | 300 VAC | 300 VAC |
1376385 Series
CONN HEADER VERT 6POS 5MM
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Connector Type | Mounting Type | Contact Type | Pitch - Mating | Pitch - Mating | Contact Shape | Style | Insulation Material | Number of Positions | Current Rating (Amps) | Number of Rows | Insulation Color | Fastening Type | Material Flammability Rating | Insulation Height | Insulation Height | Voltage Rating | Termination | Applications | Contact Length - Post | Contact Length - Post | Mated Stacking Heights | Number of Positions Loaded | Contact Material | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1376385-3 | Board Guide | -40 °C | 105 ░C | Shrouded - 4 Wall | Header | Through Hole | Tab | 5 mm | 0.197 " | Rectangular | Board to Cable/Wire | Polyamide (PA66), Nylon 6/6, Glass Filled | 6 | Varies by Wire Gauge | 1 | Blue | Locking Ramp | UL94 V-0 | 14.1 mm | 0.555 in | 300 VAC | Kinked Pin, Solder | General Purpose | 3.5 mm | 0.138 in | 19.4 mm | All | Copper Alloy | Tin |
TE Connectivity AMP Connectors 1-1376385-2 | Board Guide | -40 °C | 105 ░C | Shrouded - 4 Wall | Header | Through Hole | Tab | 5 mm | 0.197 " | Rectangular | Board to Cable/Wire | Polyamide (PA66), Nylon 6/6, Glass Filled | 6 | Varies by Wire Gauge | 1 | Red | Locking Ramp | UL94 V-0 | 14.1 mm | 0.555 in | 300 VAC | Kinked Pin, Solder | General Purpose | 3.5 mm | 0.138 in | 19.4 mm | All | Copper Alloy | Tin |
TE Connectivity AMP Connectors 1376385-1 | Board Guide | -40 °C | 105 ░C | Shrouded - 4 Wall | Header | Through Hole | Tab | 5 mm | 0.197 " | Rectangular | Board to Cable/Wire | Polyamide (PA66), Nylon 6/6, Glass Filled | 6 | Varies by Wire Gauge | 1 | Natural | Locking Ramp | UL94 V-0 | 14.1 mm | 0.555 in | 300 VAC | Kinked Pin, Solder | General Purpose | 3.5 mm | 0.138 in | 19.4 mm | All | Copper Alloy | Tin |
TE Connectivity AMP Connectors 3-1376385-4 | Board Guide | -40 °C | 105 ░C | Shrouded - 4 Wall | Header | Through Hole | Tab | 5 mm | 0.197 " | Rectangular | Board to Cable/Wire | Polyamide (PA66), Nylon 6/6, Glass Filled | 6 | Varies by Wire Gauge | 1 | Yellow | Locking Ramp | UL94 V-0 | 14.1 mm | 0.555 in | 300 VAC | Kinked Pin, Solder | General Purpose | 3.5 mm | 0.138 in | 19.4 mm | All | Copper Alloy | Tin |
