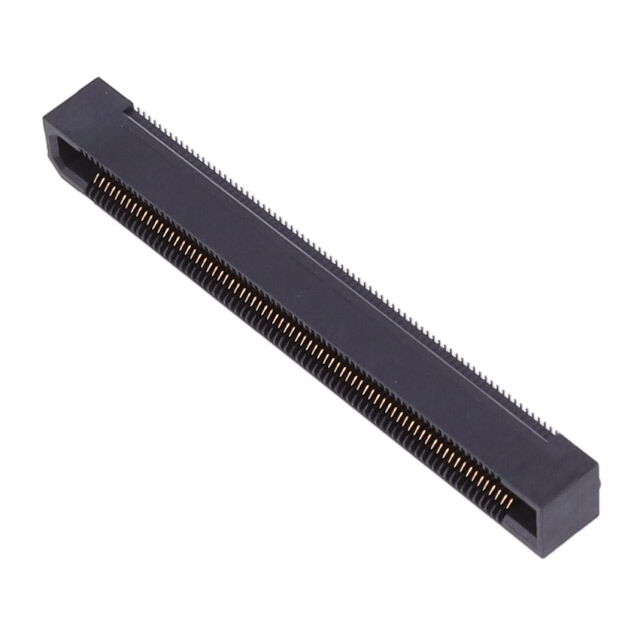

ERF5-075-05.0-L-DV-TR

Active

Samtec Inc.

CONN SOCKET 150POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 150POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-075-05.0-L-DV-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	4.9 mm
Height Above Board [z]	0.193 in
Mated Stacking Heights	10 mm, 9 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	150
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Features	Mounting Type	Number of Rows	Number of Positions
Samtec Inc. ERF5-075-07.0-S-DV-K-TR	9 mm 11 mm 12 mm	0.76 Ám	30 Áin	6.9 mm	0.272 in	Socket Center Strip Contacts	Gold	0.5 mm	0.02 in	Board Guide Pick and Place	Surface Mount	2	150
Samtec Inc. ERF5-075-05.0-L-DV-WT-TR	7 mm 9 mm 10 mm	0.25 Ám	10 Áin	4.9 mm	0.193 in	Socket Center Strip Contacts	Gold	0.5 mm	0.02 in	Board Guide Solder Retention	Surface Mount	2	150
Samtec Inc. ERF5-075-05.0-L-DV-TR	7 mm 9 mm 10 mm	0.25 Ám	10 Áin	4.9 mm	0.193 in	Socket Center Strip Contacts	Gold	0.5 mm	0.02 in	Board Guide	Surface Mount	2	150
Samtec Inc. ERF5-075-05.0-S-DV-TR	7 mm 9 mm 10 mm	0.76 Ám	30 Áin	4.9 mm	0.193 in	Socket Center Strip Contacts	Gold	0.5 mm	0.02 in	Board Guide	Surface Mount	2	150
Samtec Inc. ERF5-075-07.0-L-DV	9 mm 11 mm 12 mm	0.25 Ám	10 Áin	6.9 mm	0.272 in	Socket Center Strip Contacts	Gold	0.5 mm	0.02 in	Board Guide	Surface Mount	2	150

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
