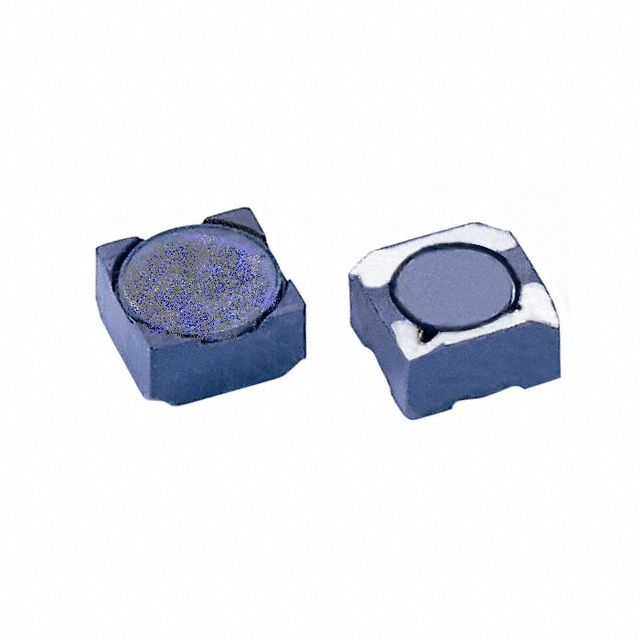

SCMS5D25-1R8
ActiveSignal Transformer
FIXED IND 1.8UH 3.6A 30 MOHM SMD
SCMS5D25-1R8
ActiveSignal Transformer
FIXED IND 1.8UH 3.6A 30 MOHM SMD
Description
General part information
SCMS5D25-1R8
1.8 µH Shielded Inductor 3.6 A 30mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCMS5D25-1R8 |
|---|---|
| Current - Saturation (Isat) | 2.5 A |
| Current Rating | 3.6 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Height - Seated (Max) | 0.11 in |
| Inductance | 1.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 30 % |
